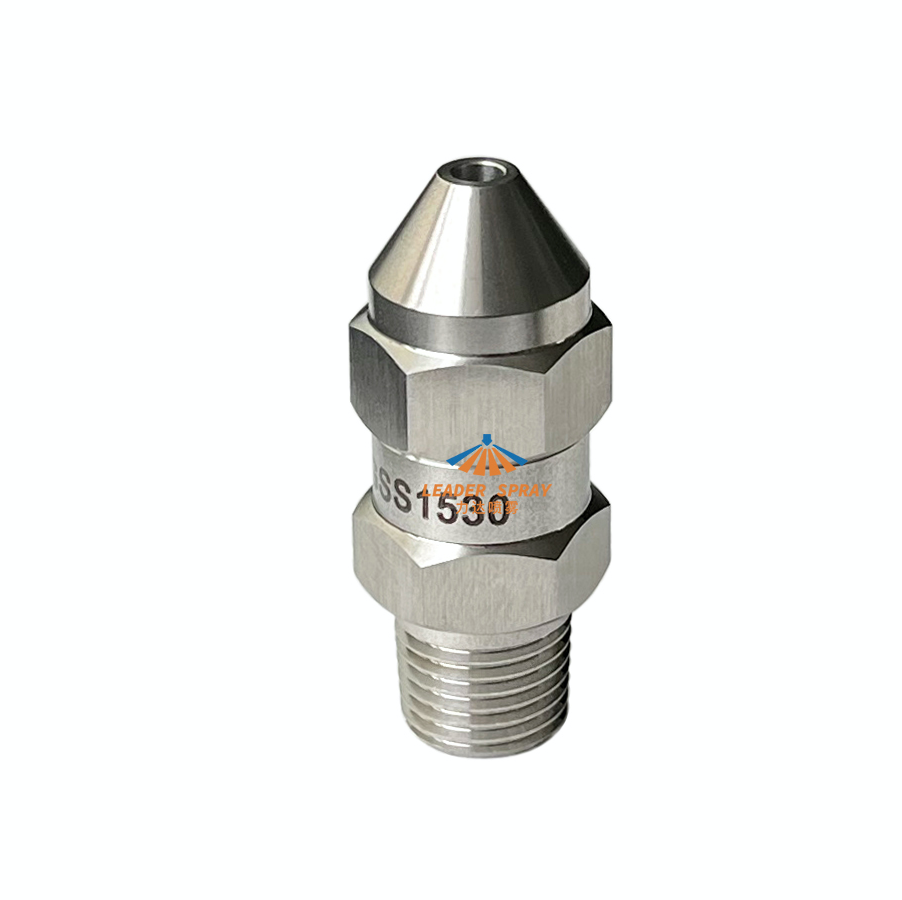

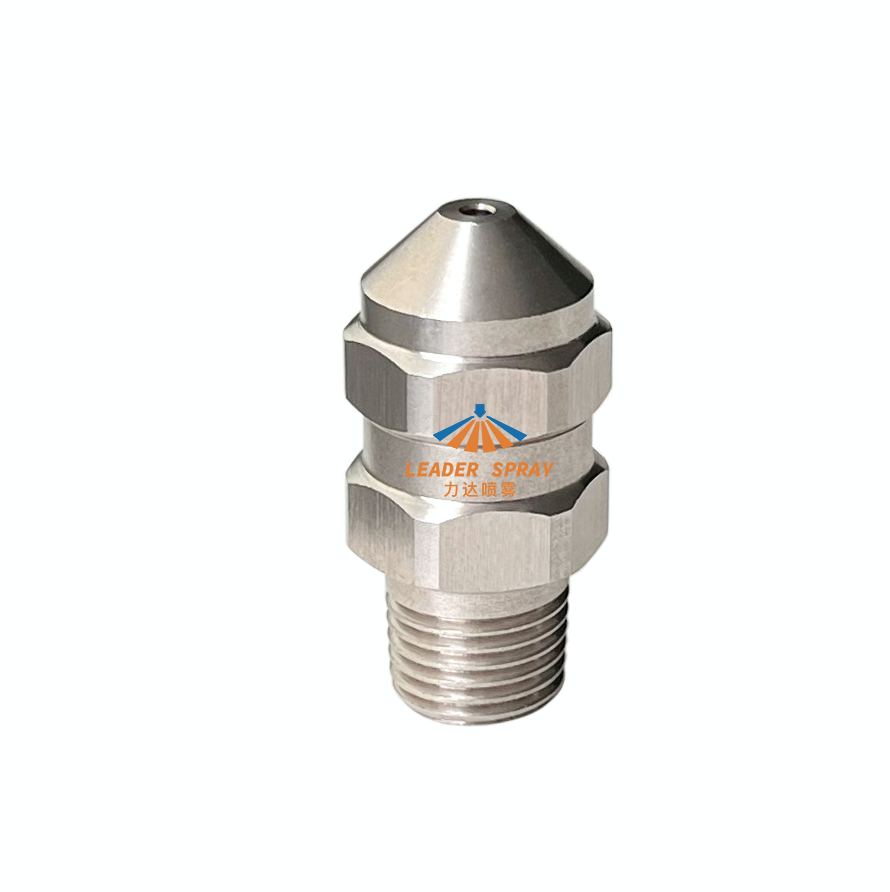

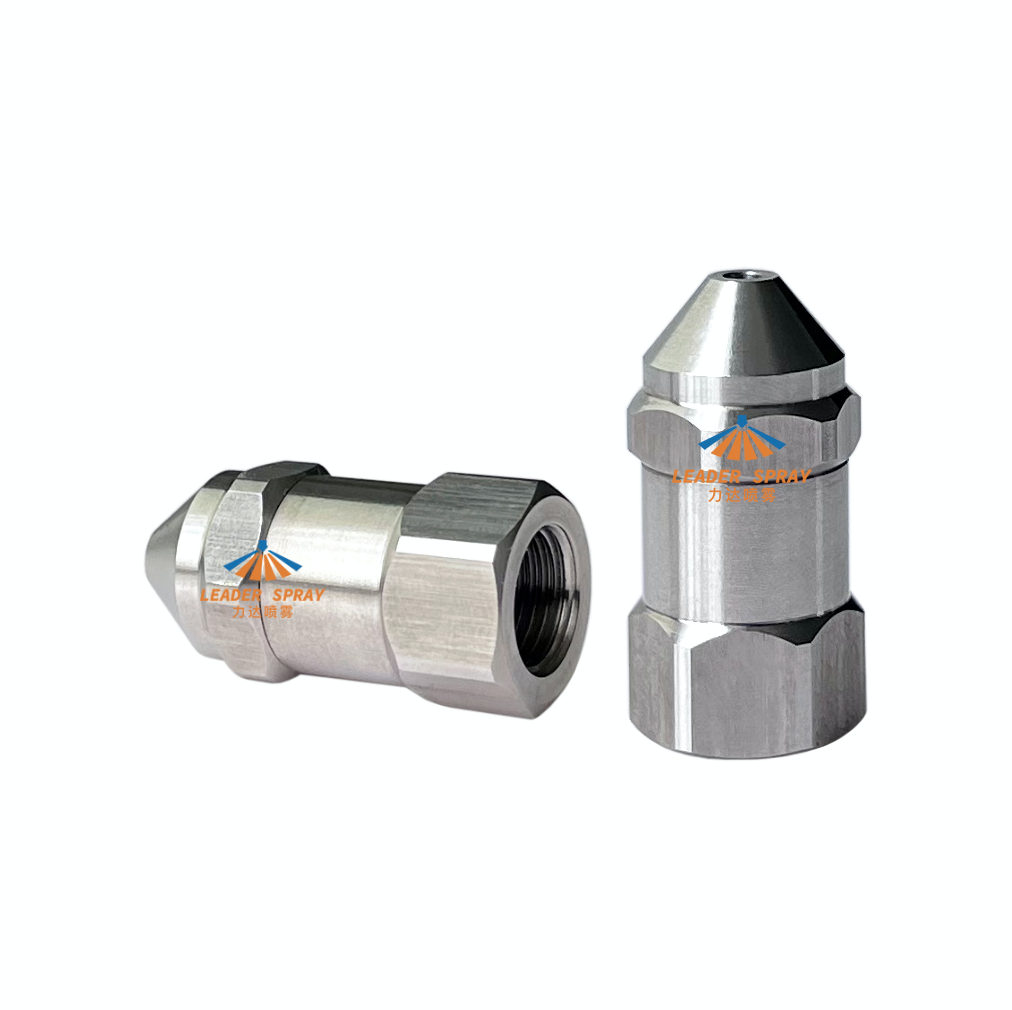

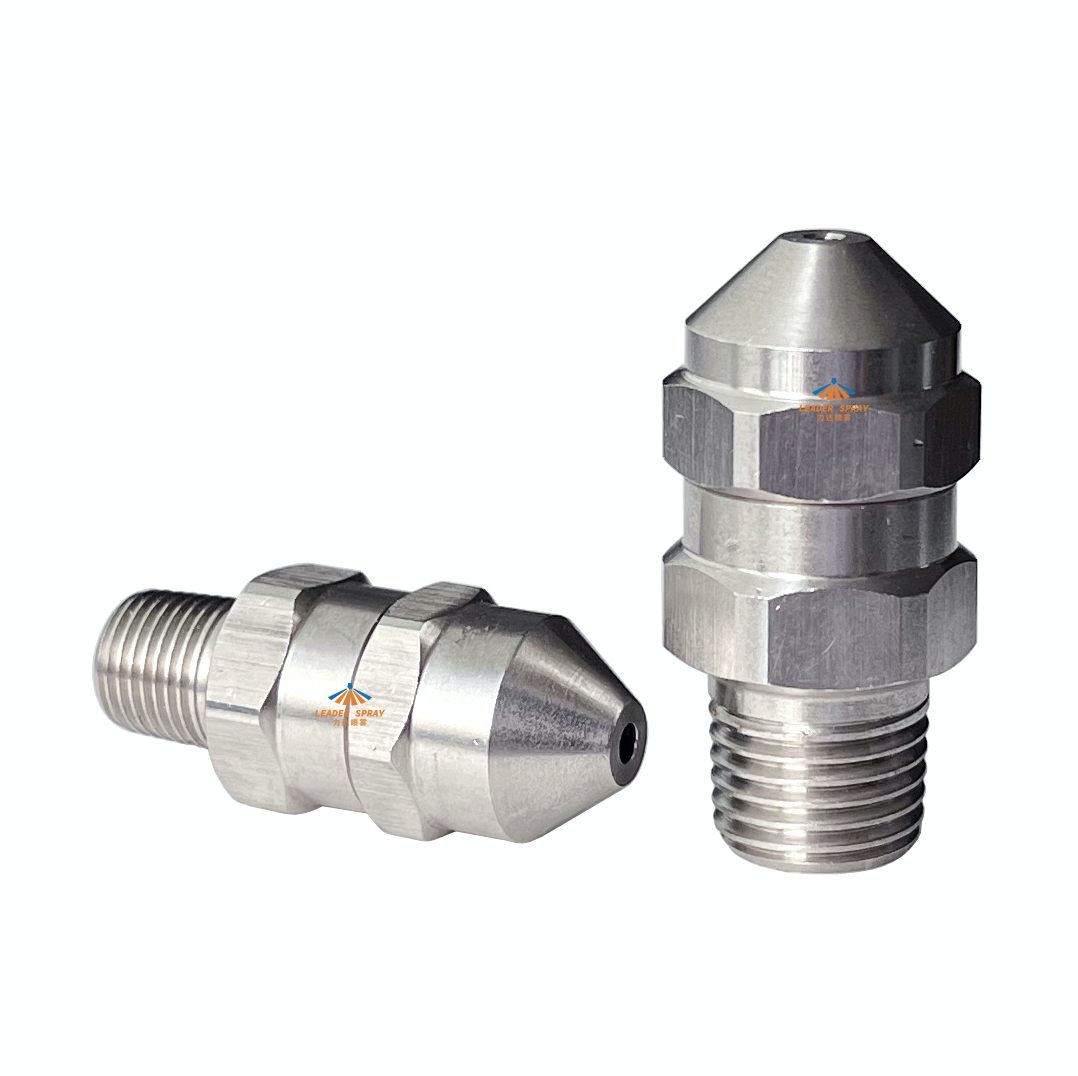

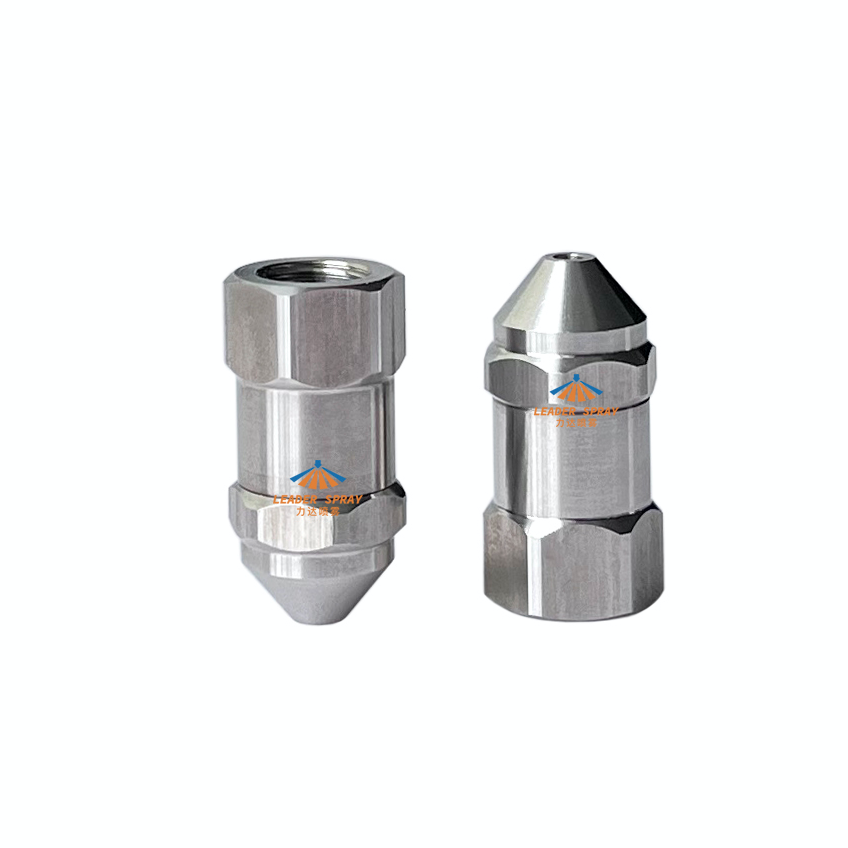

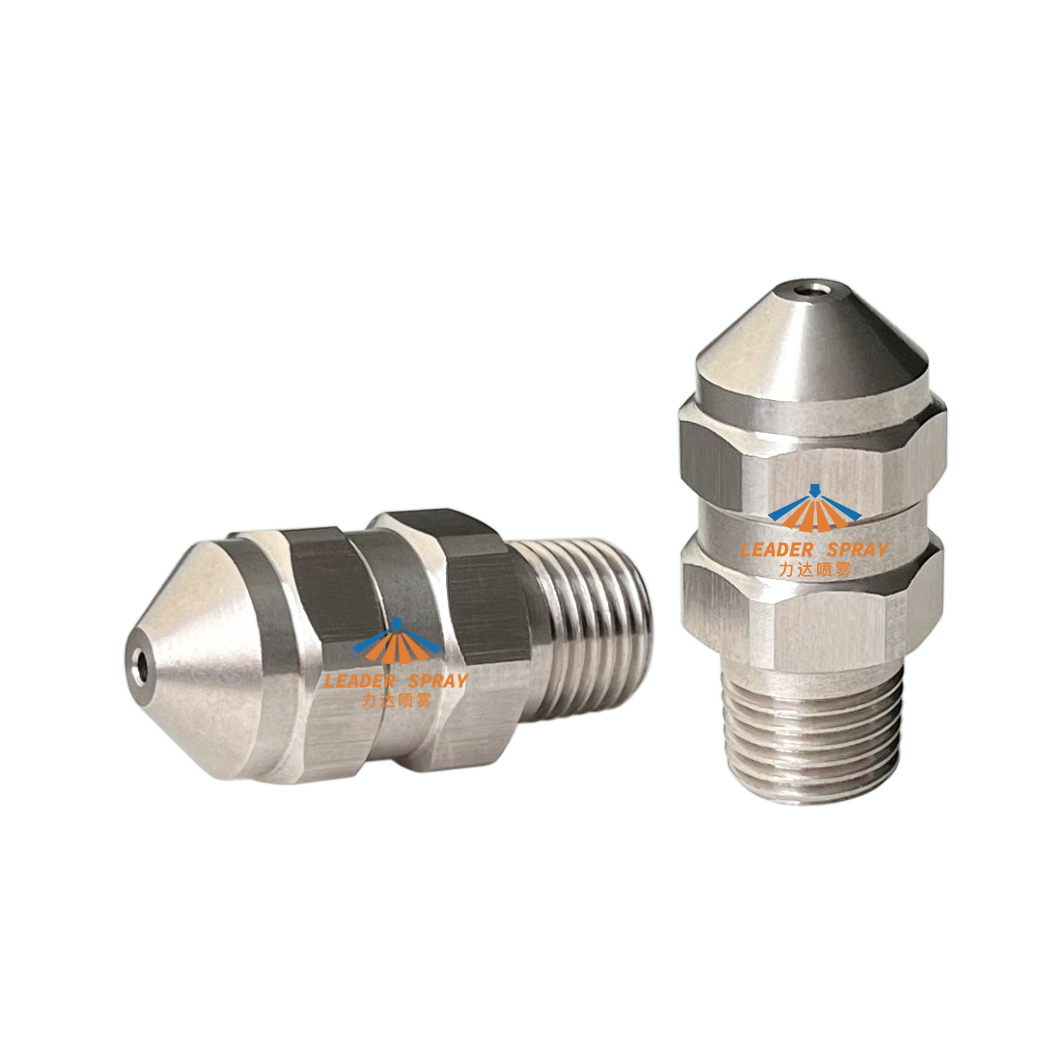

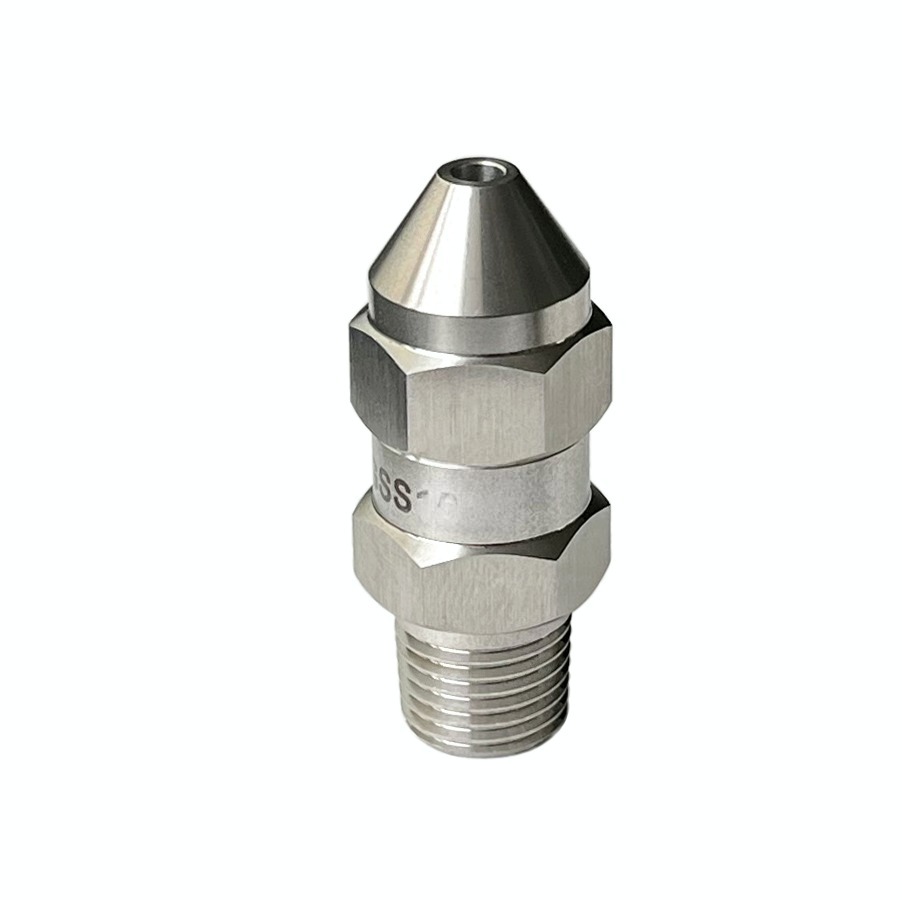

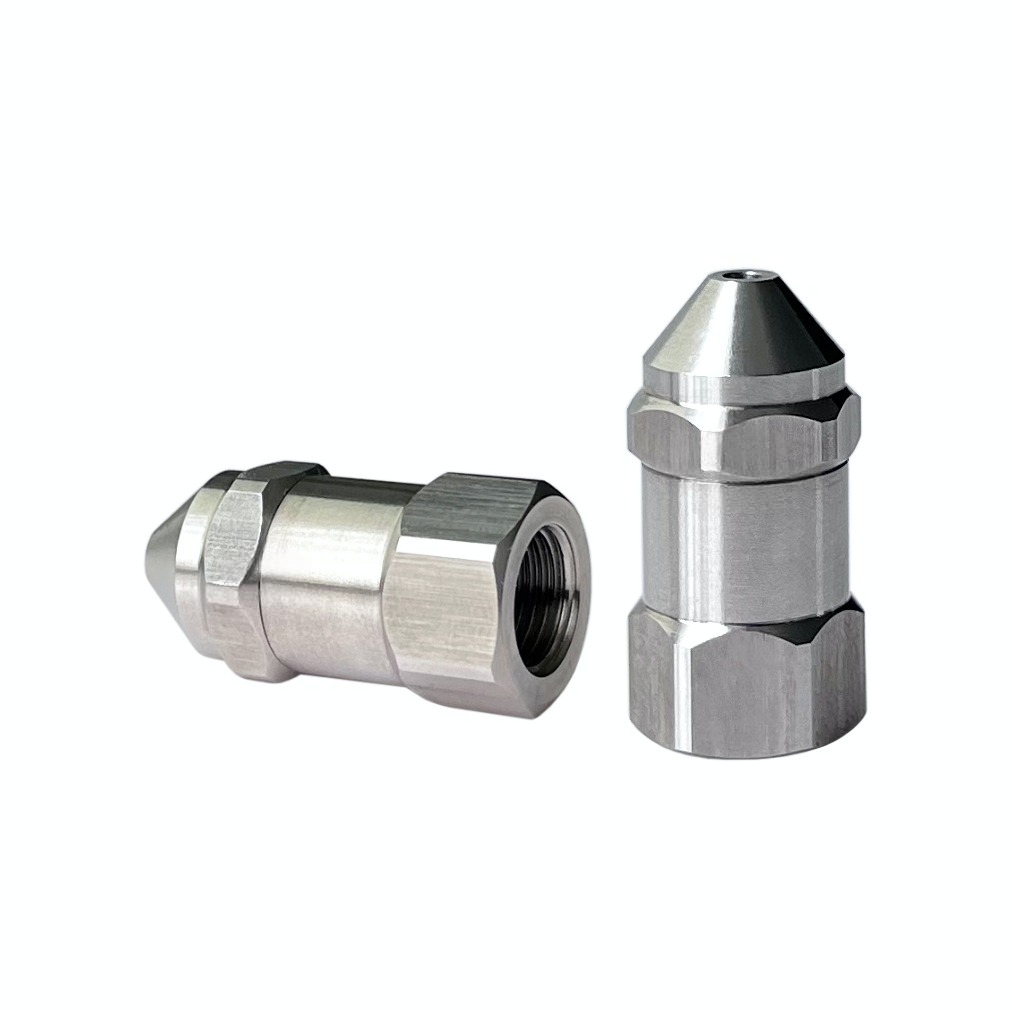

Narrow angle solid full cone spray removable/detachable 15/30 degree high impact superheated steam cooling jet solid nozzle

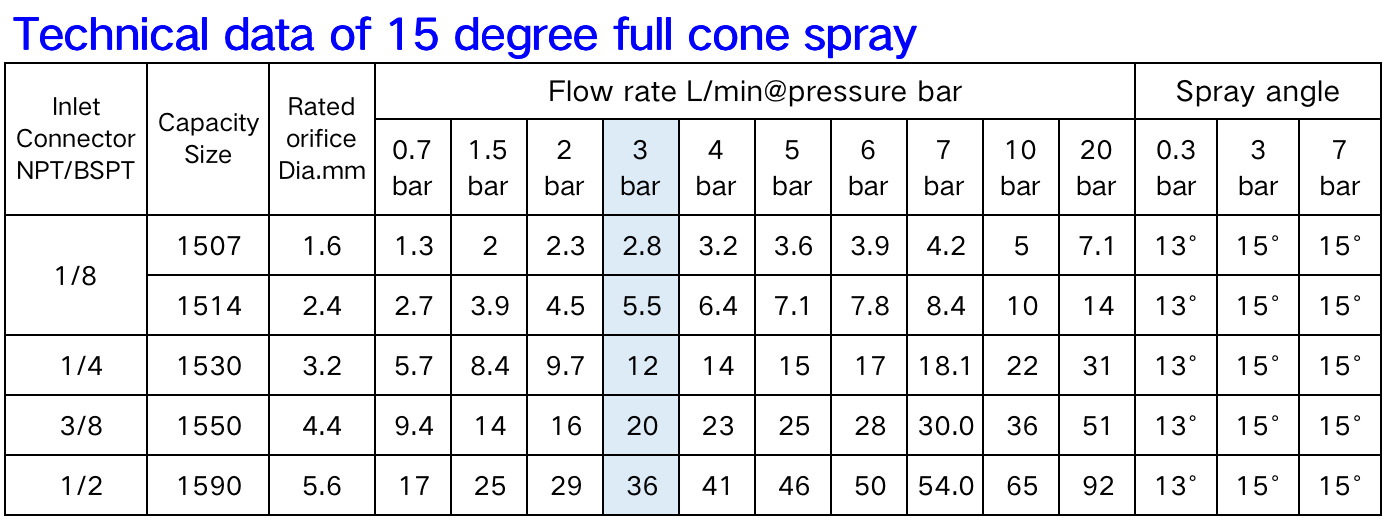

Spray Characteristics
● Thread size: 1/8″,1/4″, 3/8″,1/2″
● Spray pattern: 15° and 30° full cone
● Material: SS/Brass
● Advantage: be customized

Артикул: 886453 Категория:

Описание

Product feature:
● Spray angle: 15° and 30°;
● Thread Specifications: 1/8″, 1/4″, 3/8″, 1/2″;
● Droplet Size: Droplet size is small to medium, well distributed, and best suited for a wide range of pressures and flows;
● Material: Stainless Steel (SS) and Brass;
● Features:

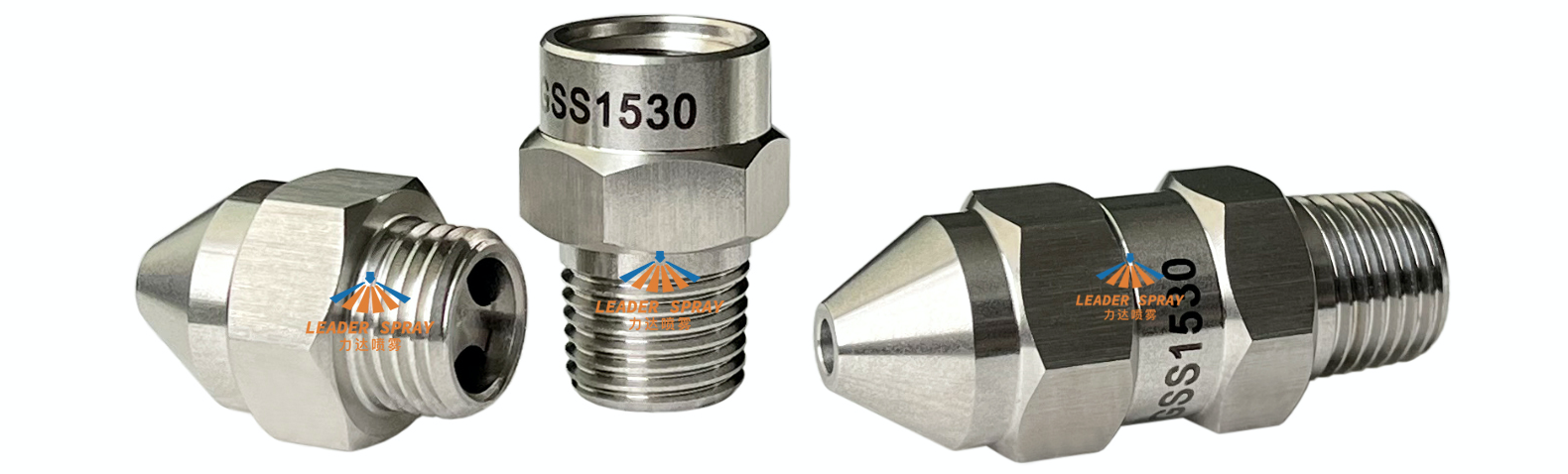

Detachable cap design for easy maintenance and cleaning;
The interior is designed for vanes and large flow channels to ensure and control the even distribution of the spray show.

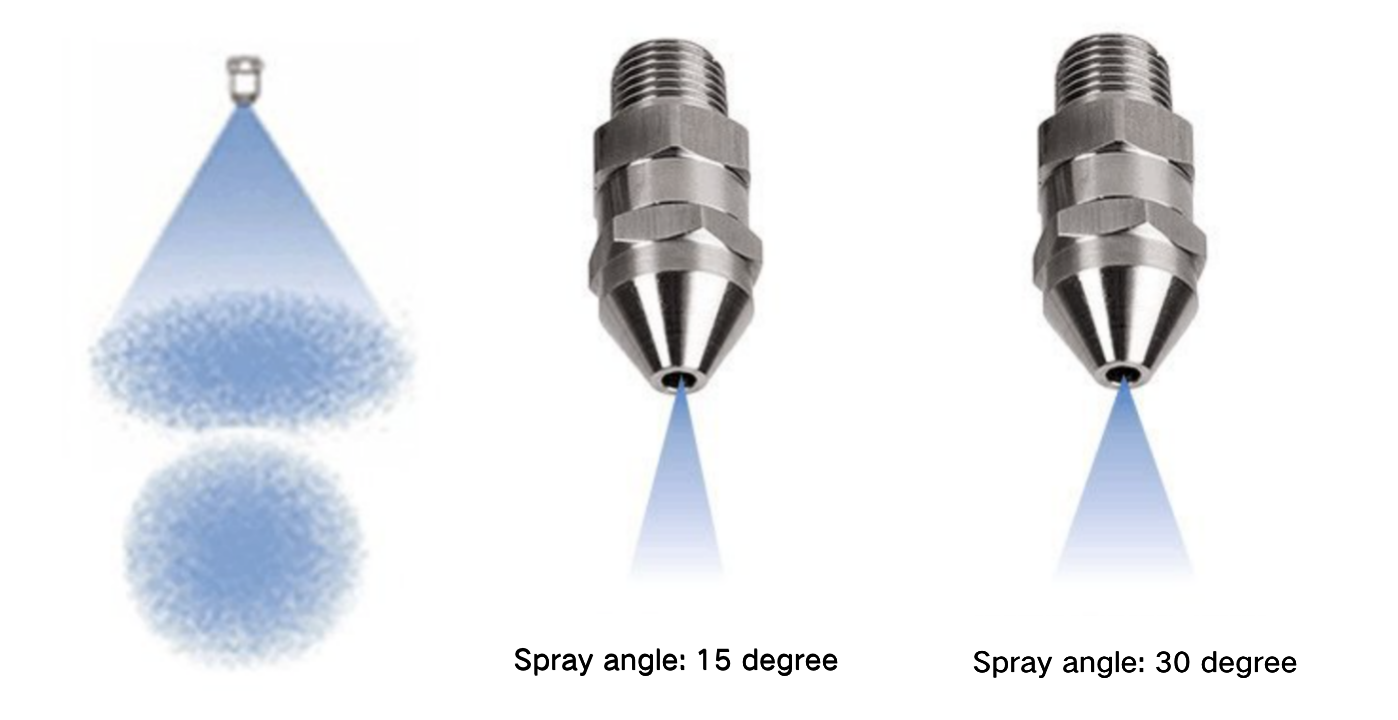

Narrow angle high impact full cone spray (15° and 30°):













Applications:
● Phosphating of metal parts
● Car rain test
● High pressure washing
● Chemical cleaning of printed circuit boards
● Mirror-making silver plated
● Paper mill mesh roll cleaning
● Food Industry Beverage Bottle Cleaning
● SO2 removal
● Nitric oxide control
● Steelmaking and continuous casting cooling
● Exhaust gas scrubbing
● Quenching and Cooling
● Fire fighting and fire protection
● Dust control
● Defoaming
● Spray application
