Product feature:

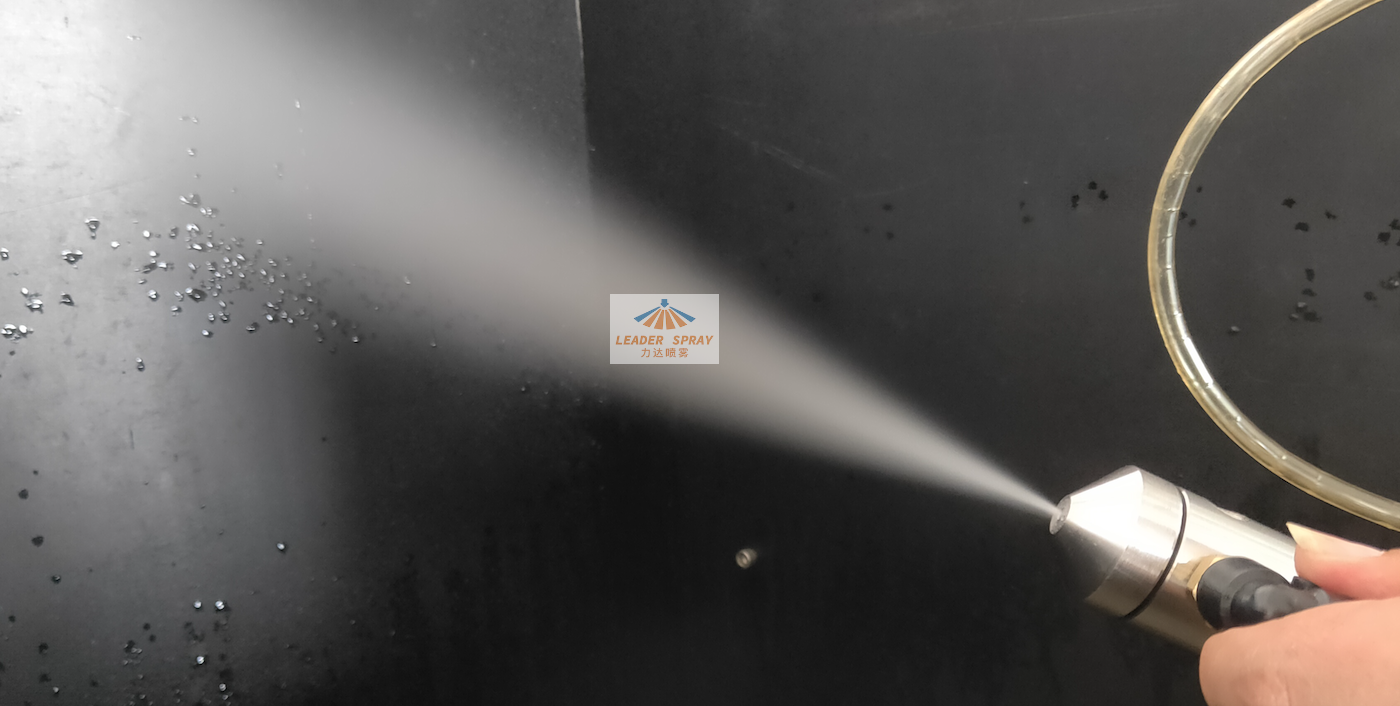

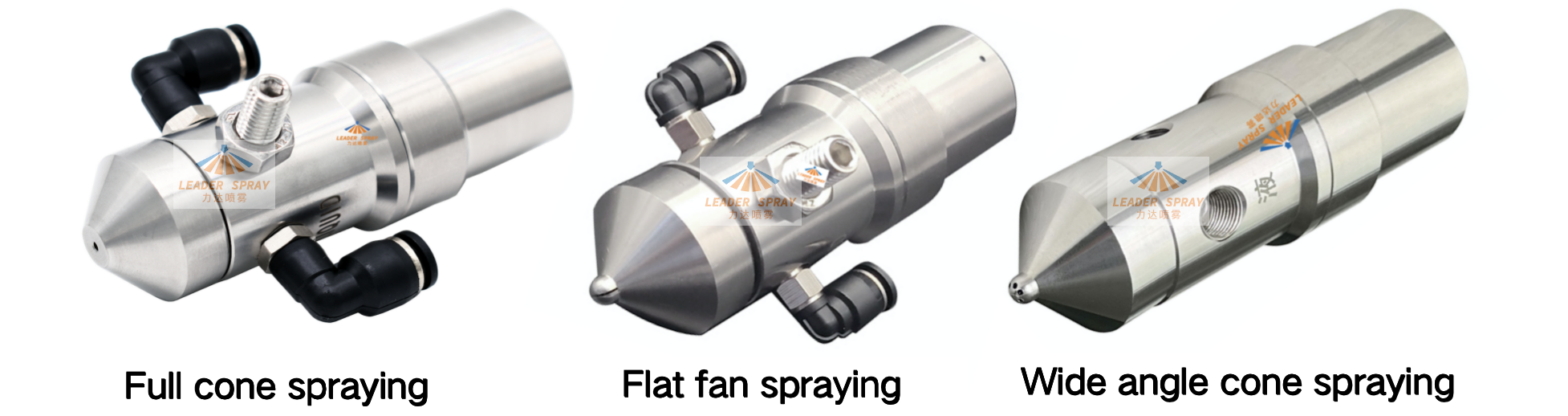

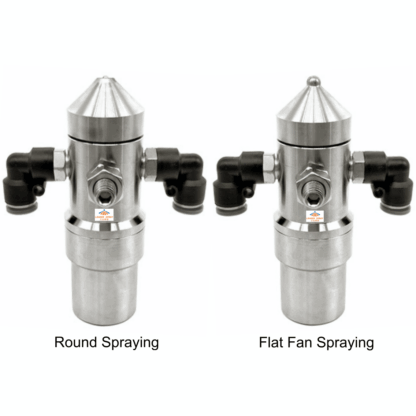

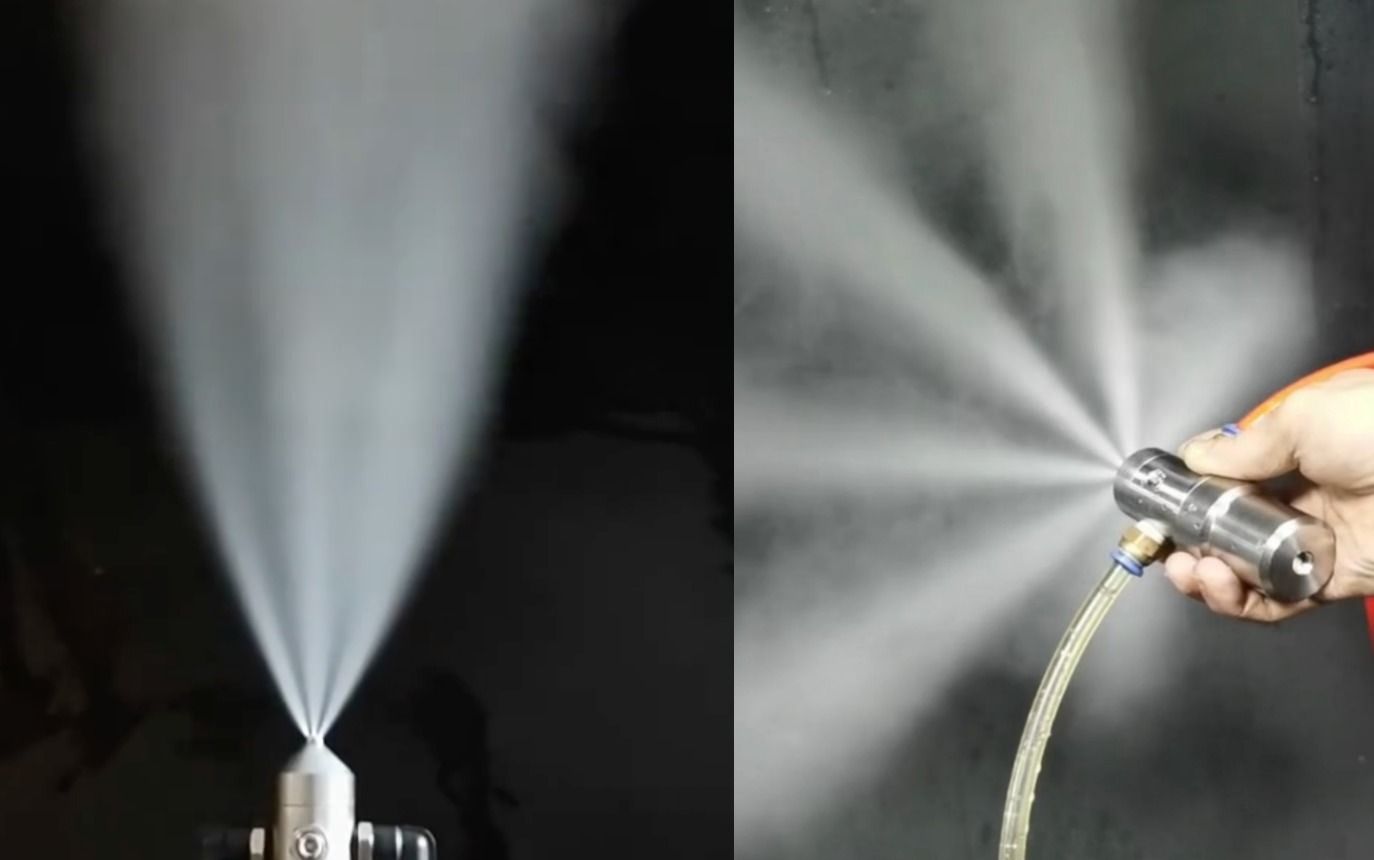

Spraying model 1 ● Code: Pressure flat fan atomizing ● Orifice size: 0.8mm ● Spray angle: flat fan 120 degree ● Nozzle length: 109.5mm ● Nozzle O.D. size: 35mm ● Flow rate: 25L/H ● Air working pressure: 0.3-0.5MPa ● Liquid working pressure: 0.1-0.3MPa ● Anti-drip design, when shut off the air pressure, nozzle stop to spraying and no liquid leaks

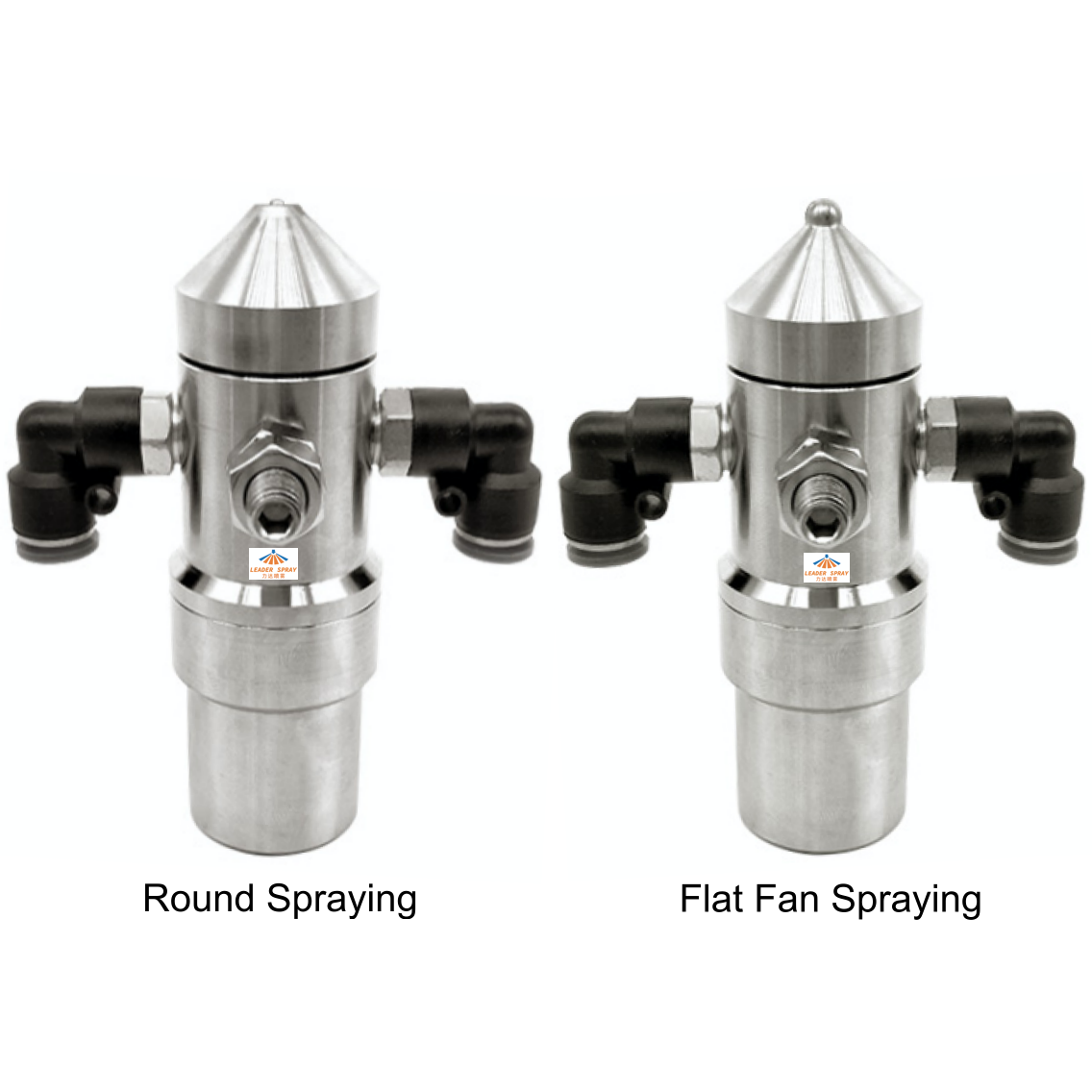

Spraying model 2 ● Code: Siphon round (cone) atomizing (Siphon height around 1.5 meter) ● Orifice size: 0.8mm ● Spray angle: cone 15 degree ● Nozzle length: 109.5mm ● Nozzle O.D. size: 35mm ● Flow rate: 8L/H ● Air working pressure: 0.3-0.5MPa ● Liquid working pressure: 0.1-0.3MPa ● Anti-drip design, when shut off the air pressure, nozzle stop to spraying and no liquid leaks

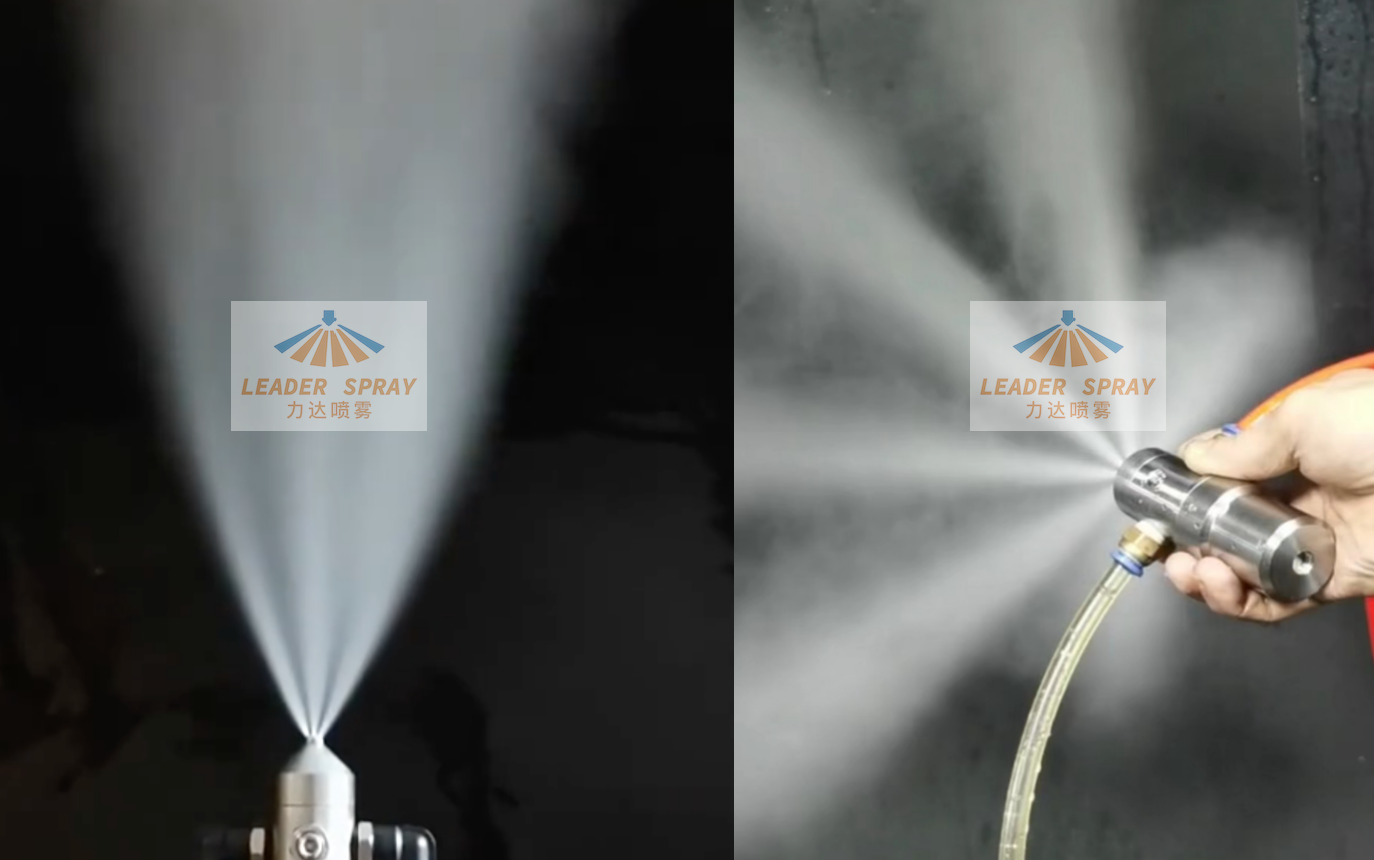

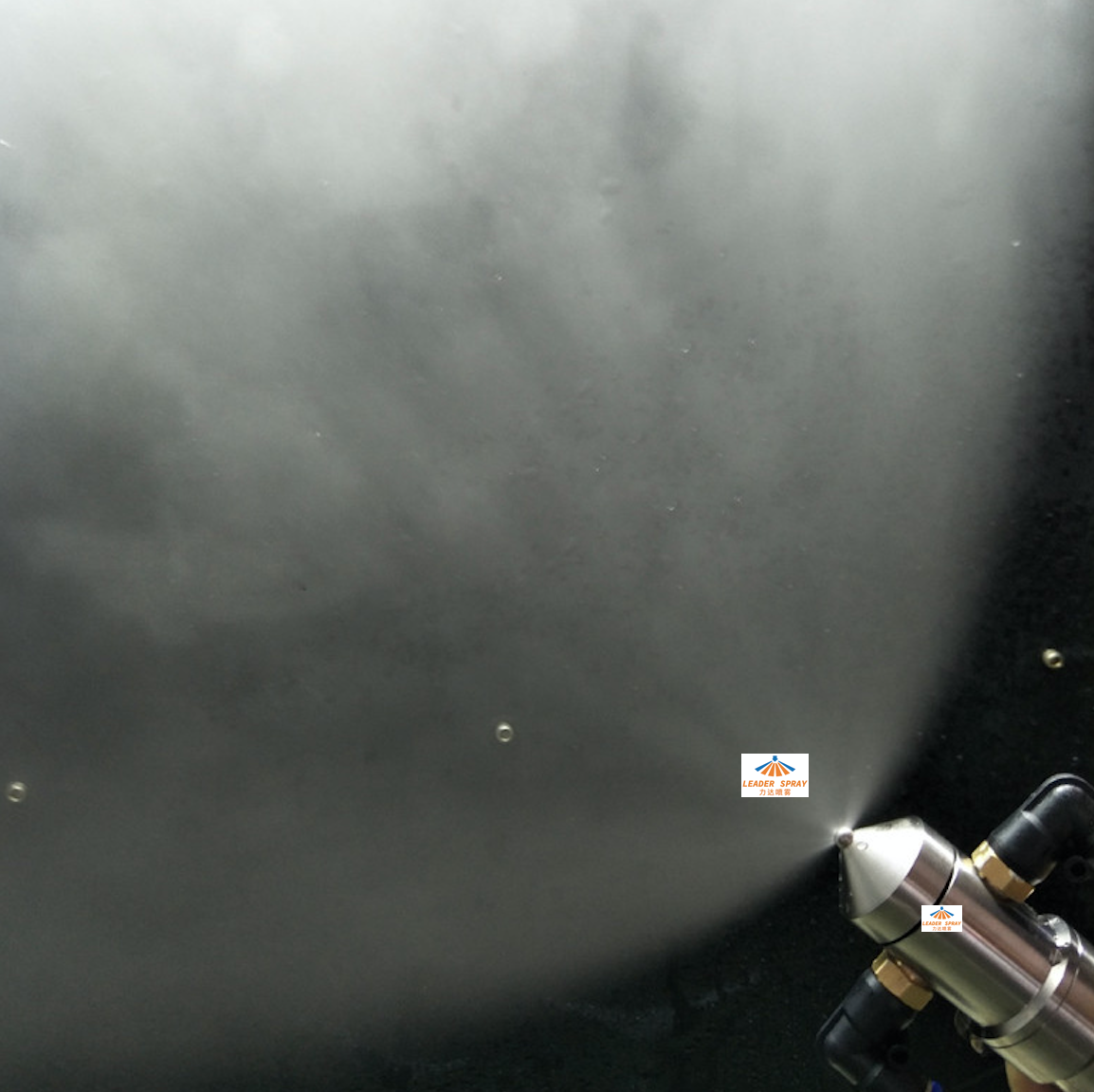

Spraying model 3 ● Code: Pressure Wide angle full cone ( 6 holes ) atomizing ● Orifice size: 1mm ● Spray angle: cone 45 degree, 80 degree, 120 degree, 180 degree ● Nozzle length: 109.5mm ● Nozzle O.D. size: 35mm ● Flow rate: Be customized ● Air working pressure: 0.3-0.5MPa ● Liquid working pressure: 0.1-0.3MPa ● Anti-drip design, when shut off the air pressure, nozzle stop to spraying and no liquid leaks

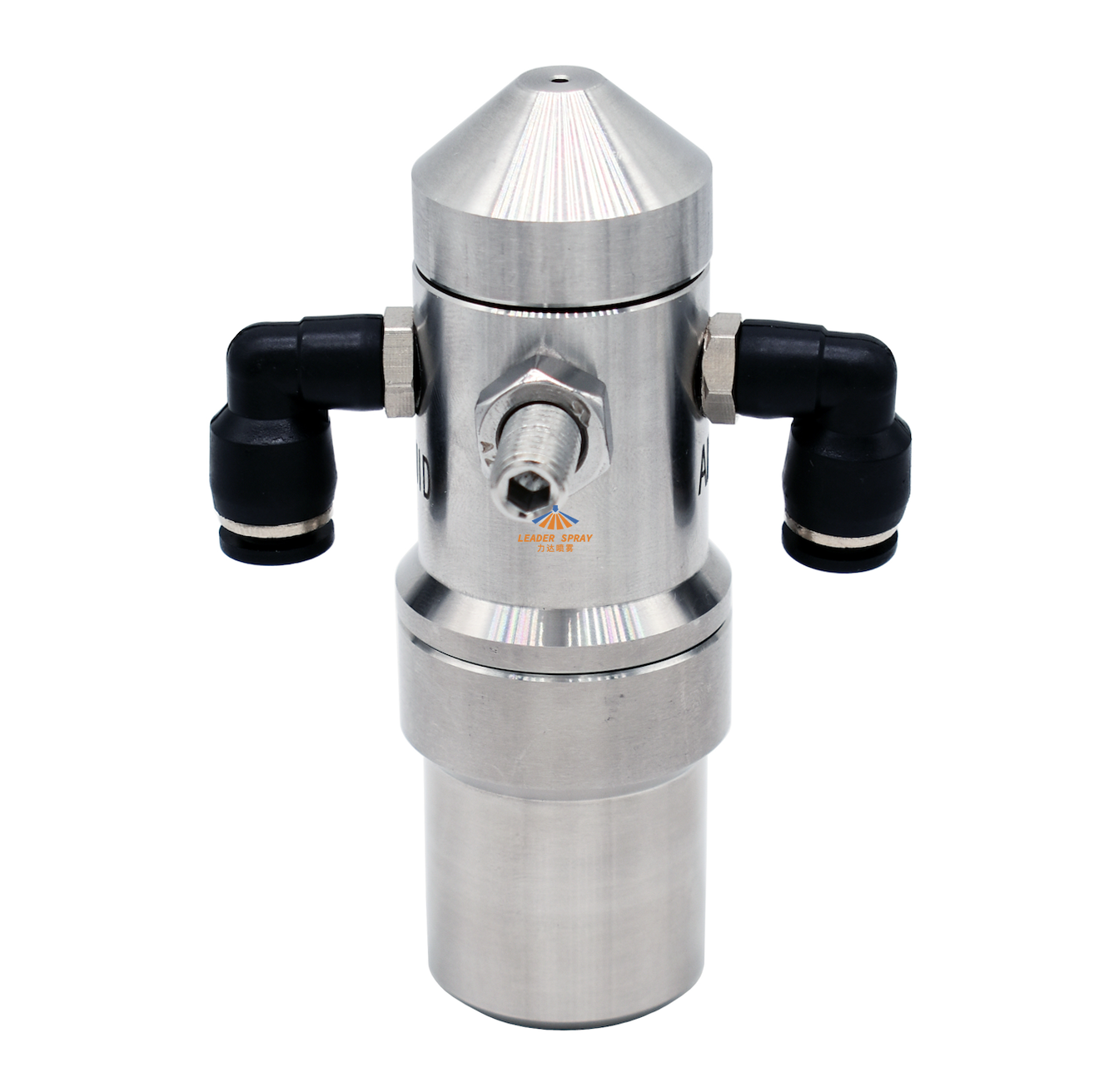

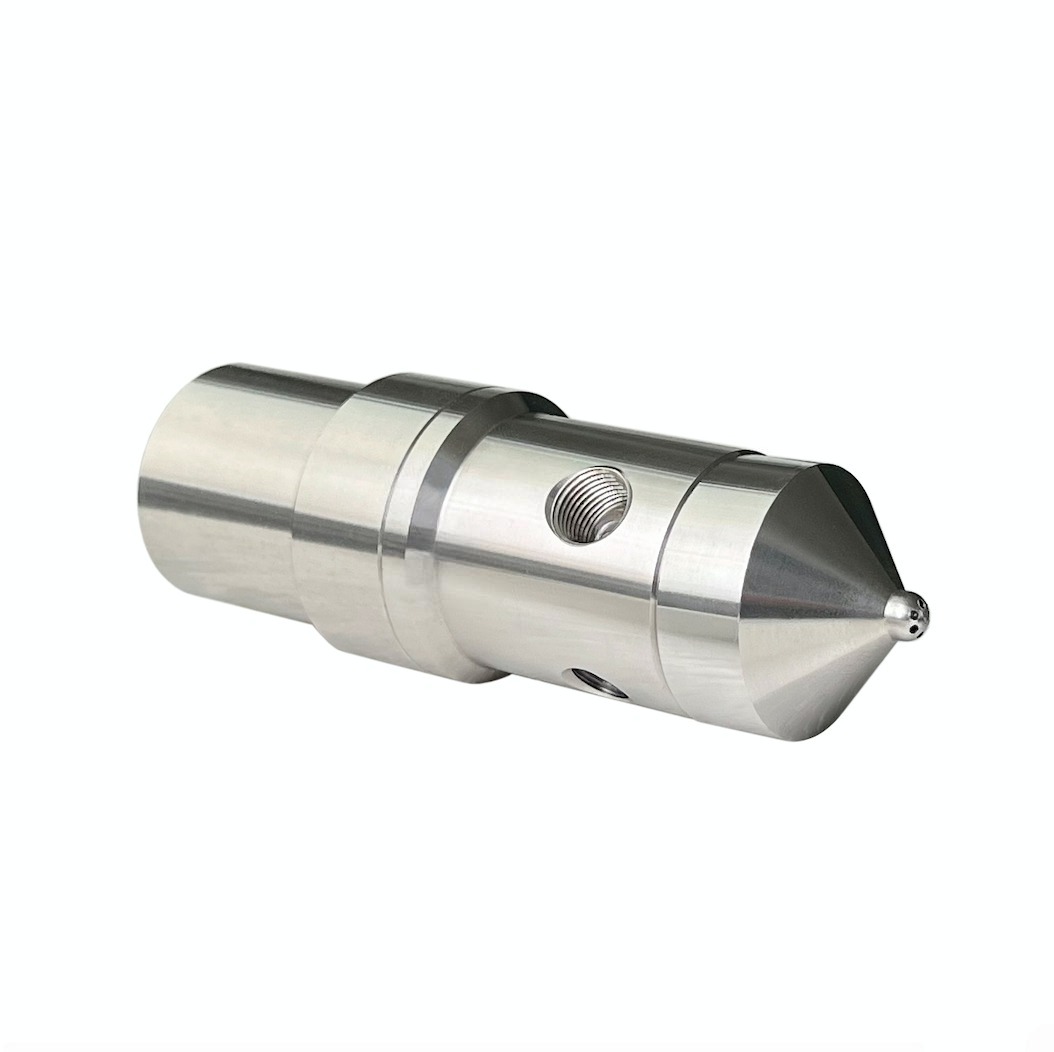

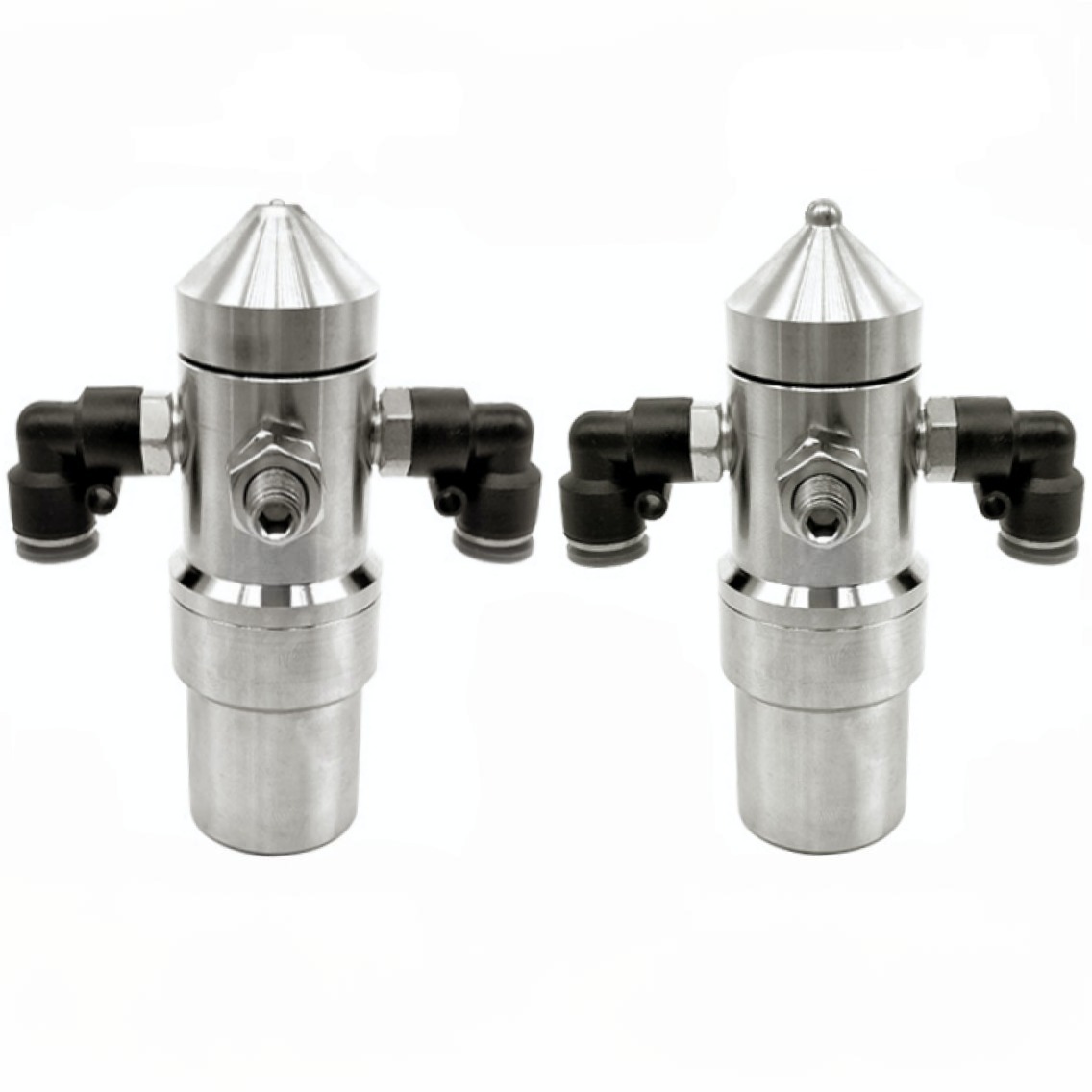

Products pictures:

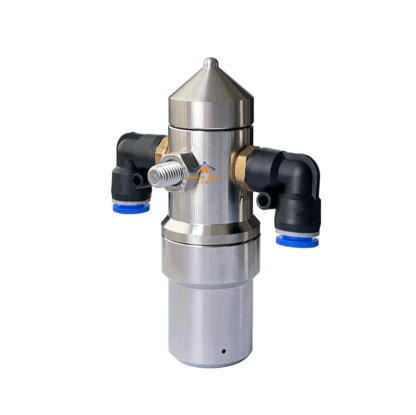

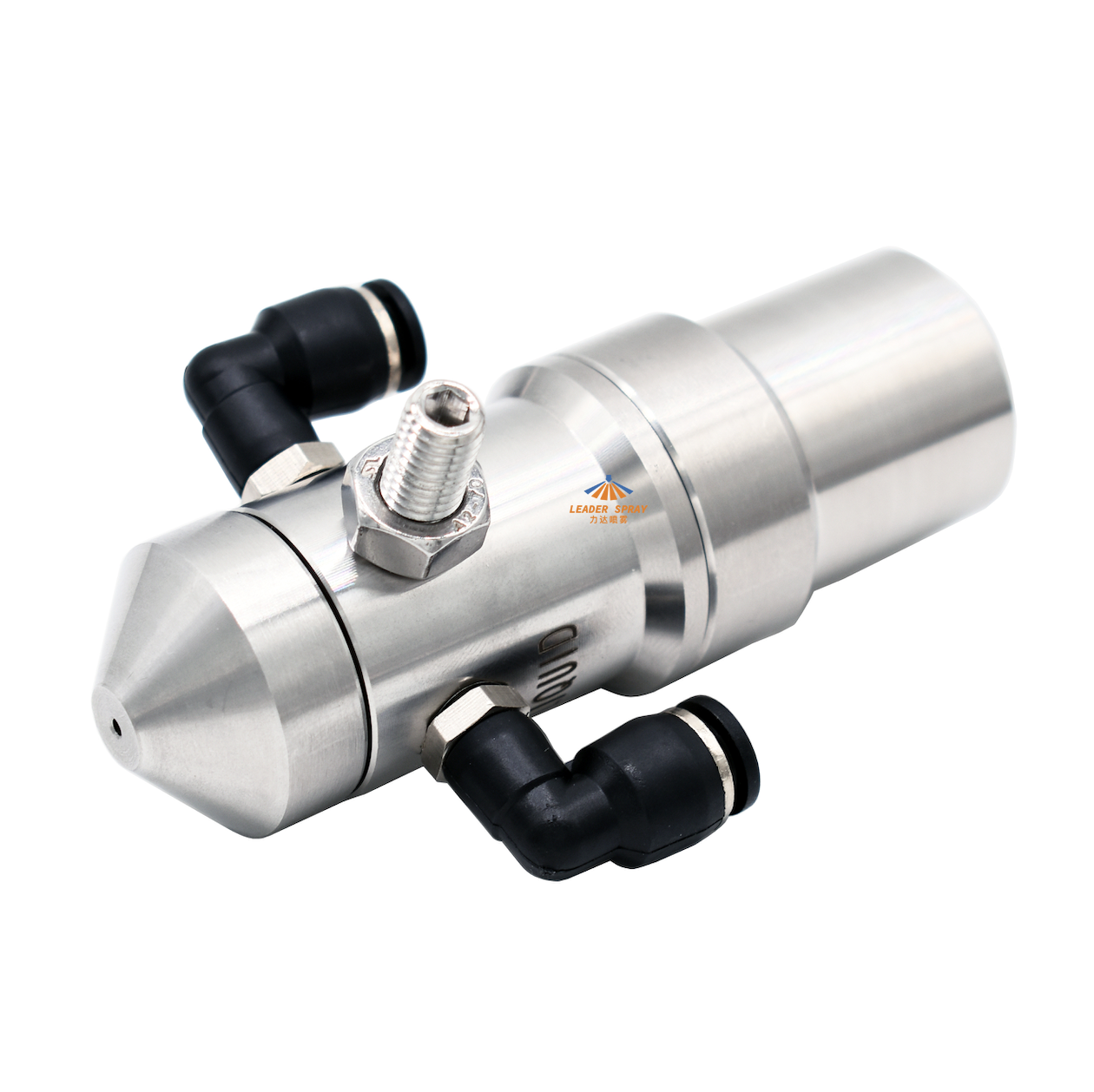

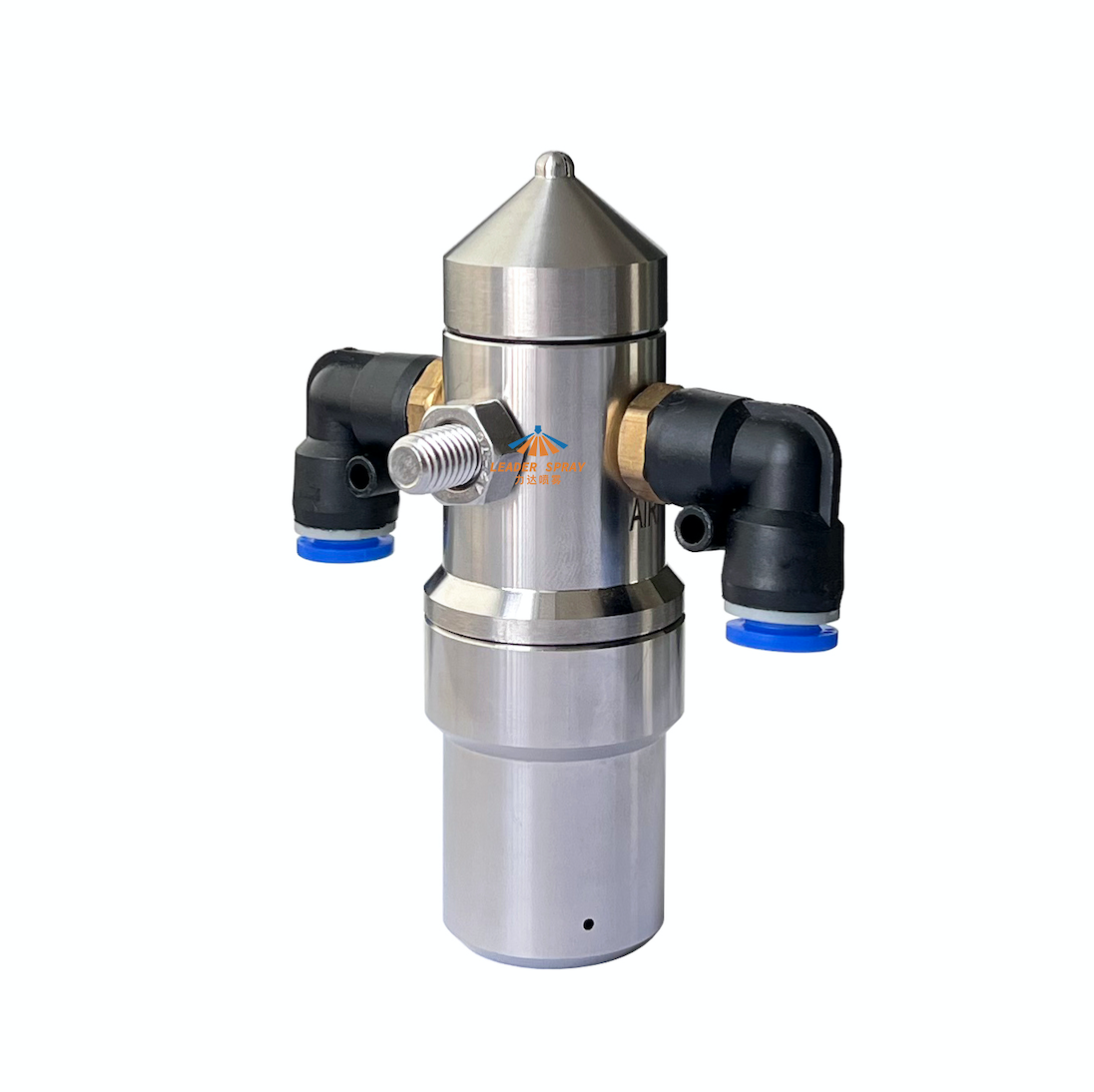

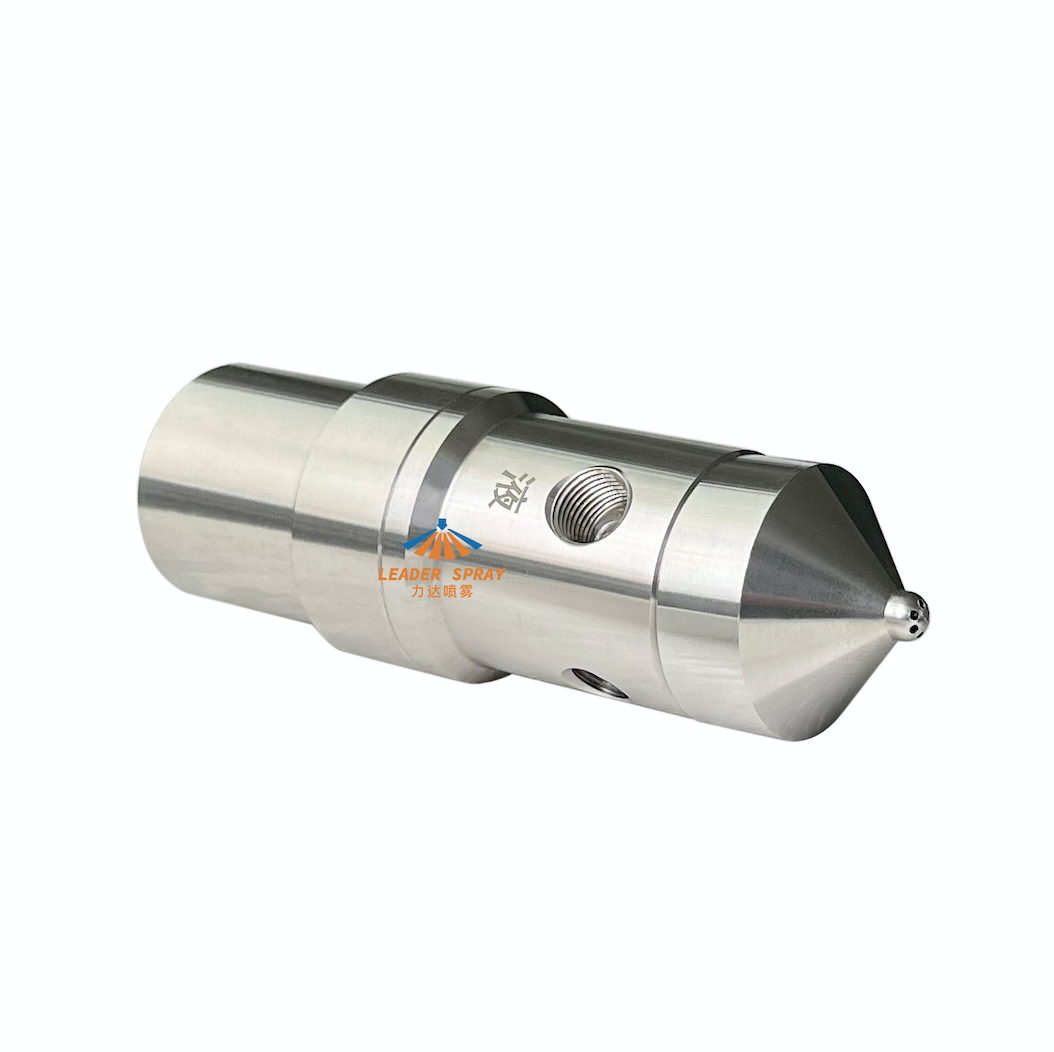

Pneumatic Atomizing Nozzles

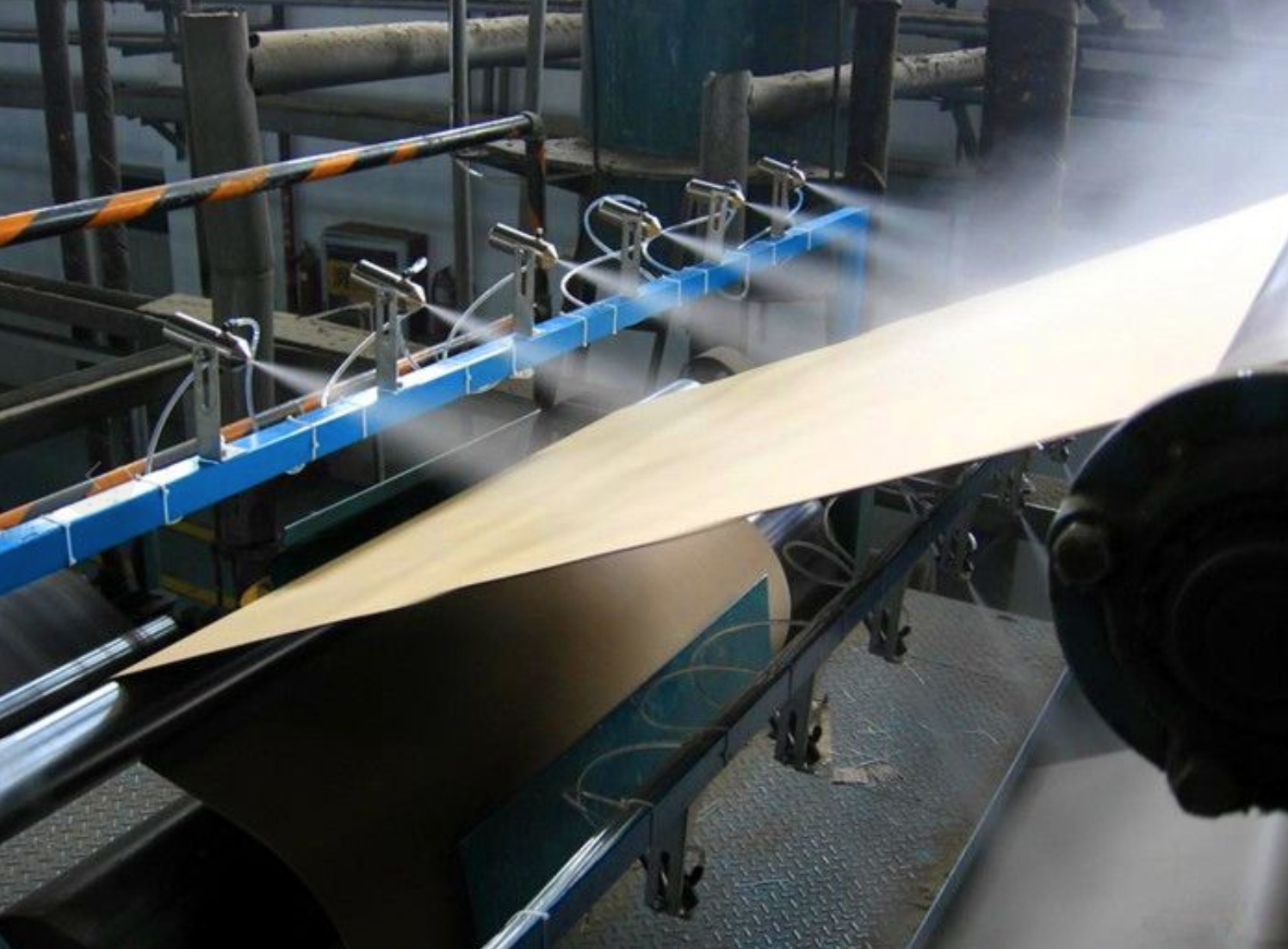

Applications:
1. Air humidification;
2. Chemical processing;
3. Chemical spraying;
4. Liquid spraying;
5. Tobacco humidification;
6. Flue gas evaporation and cooling;
7. Sterilization and Disinfection;
8. Cooling parts;
9. Spraying, lubricants.
