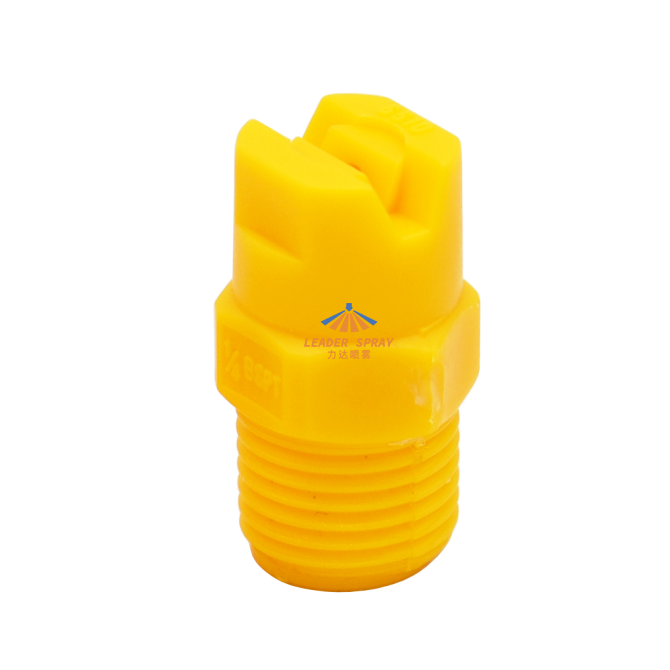

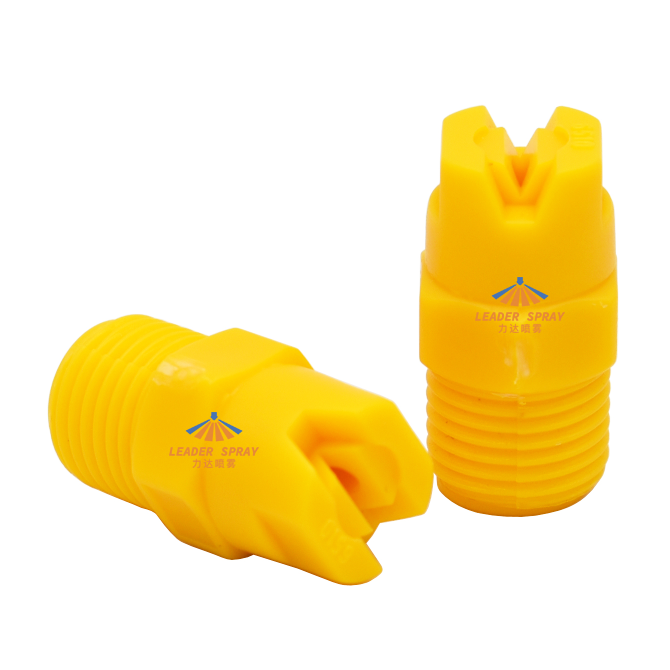

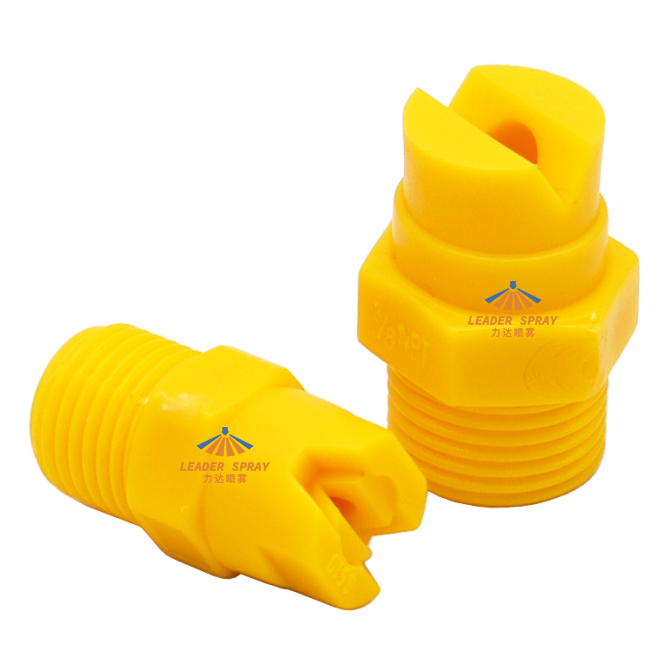

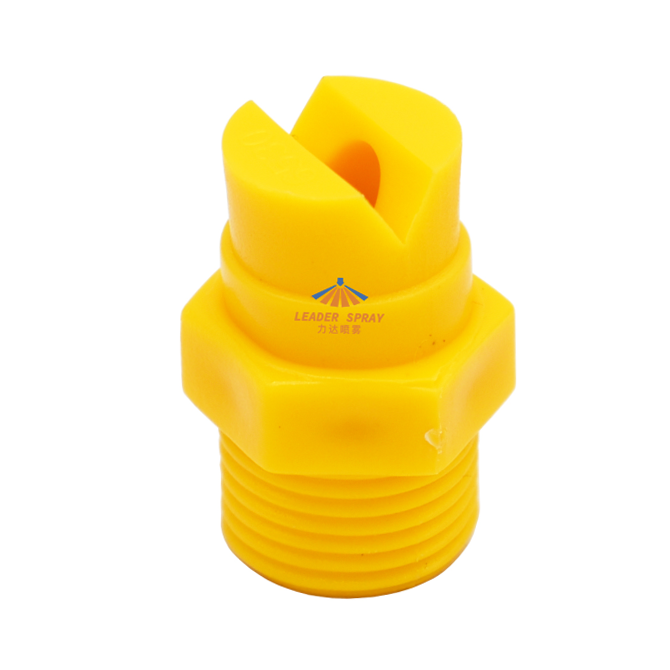

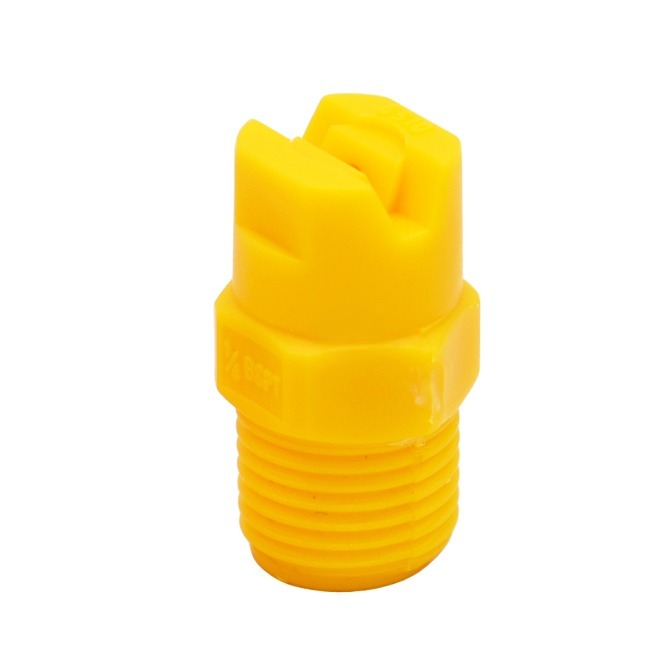

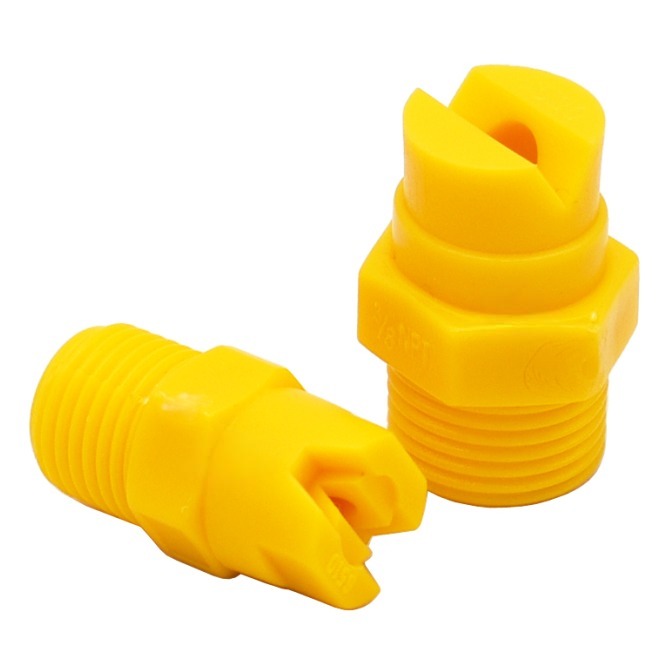

1/8″, 1/4″, 3/8″, 1/2″ Yellow plastic PP 6510 6520 6530 CCKY spray flat fan nozzle

Spray Characteristics
● Spray pattern: flat fan
● Operating pressure: common pressure (1 to 15 bar)
● Thread size: 65, 80, 95, 110 degrees
● Produced by mould
● Accept sample order (1-2 pieces)
● Shipping time: 1-2days after pay

Артикул: 857829 Категории: ,

Описание

Product feature:
• Standard angle flat fan spraying; • Thread size from 1/8″, 1/4″, 3/8″, 1/2″; • Plastic material; • Droplet size from small- to medium to large; • Flat spray pattern distributes the liquid as a flat- or sheet-type spray; •1/8 CCKY (11003), 1/8 CCKY (6508); •1/4 CCKY (11002), 1/4 CCKY (6504), 1/4 CCKY (6506), 1/4 CCKY (6508),1/4 CCKY (6510), 1/4 CCKY (6515), 1/4 CCKY (6520), 1/4 CCKY (9508), 1/4 CCKY (8030); •3/8 CCKY (6510), 3/8 CCKY (6530); •1/2 CCKY (6510), 1/2 CCKY (6520), 1/2 CCKY (6530).

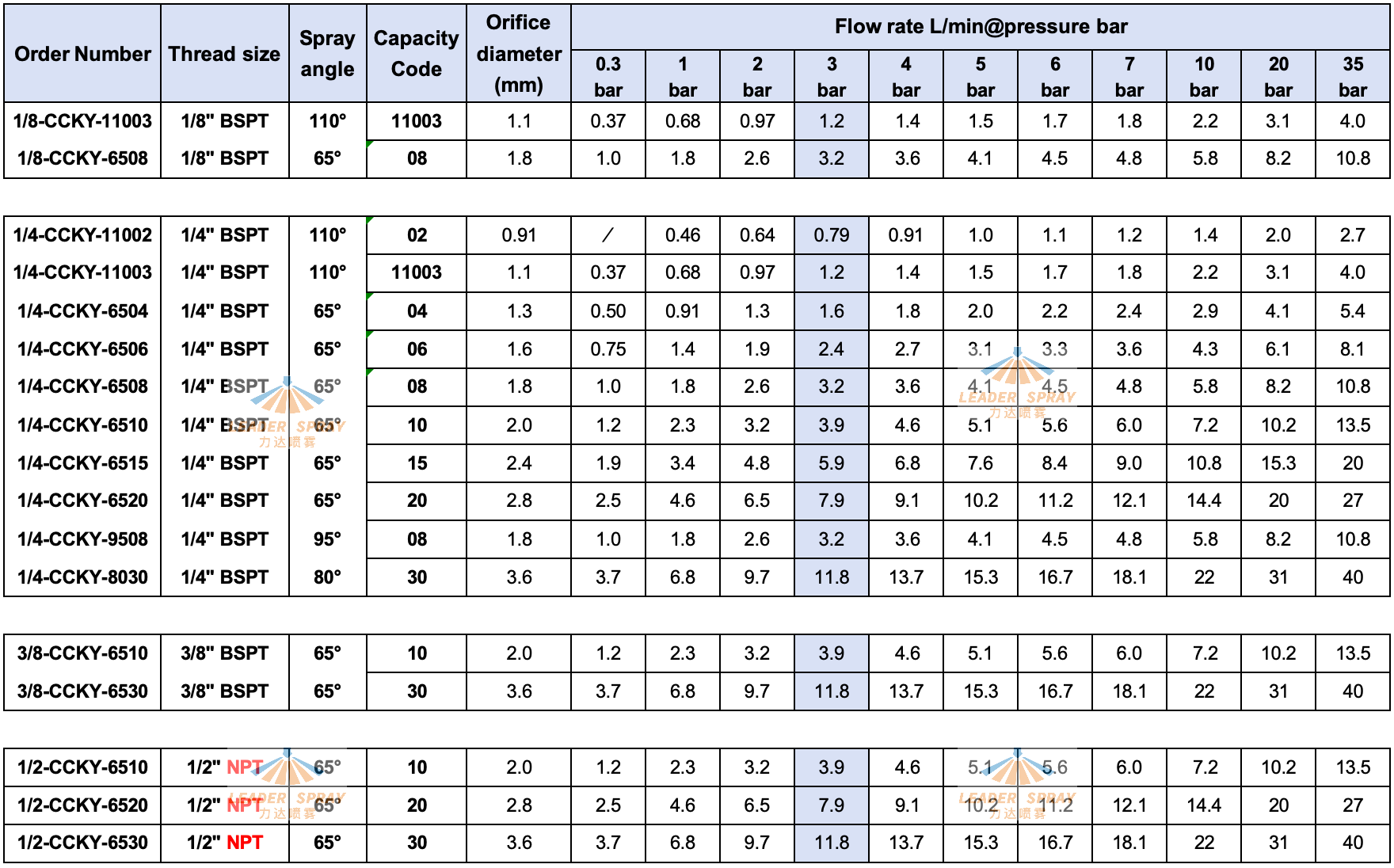

Technical data:

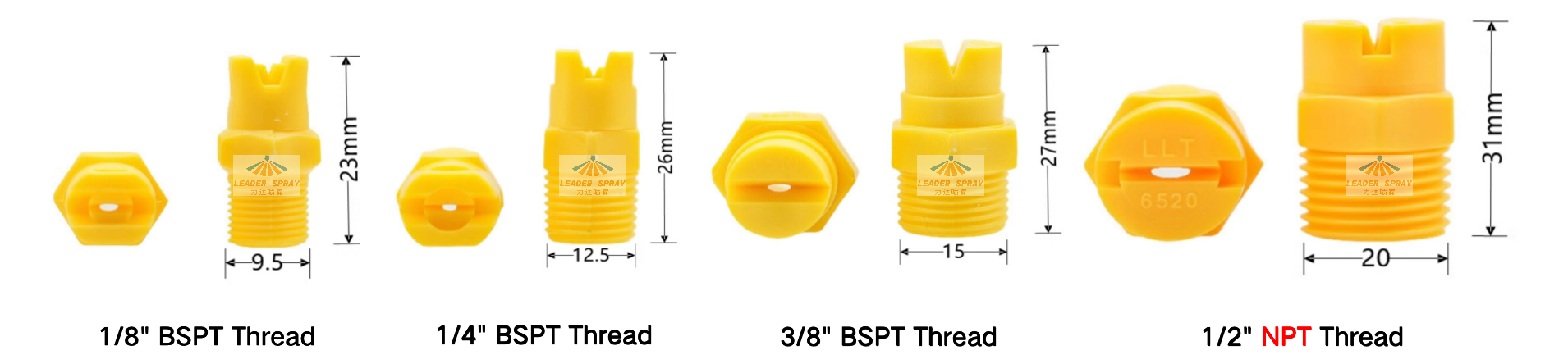

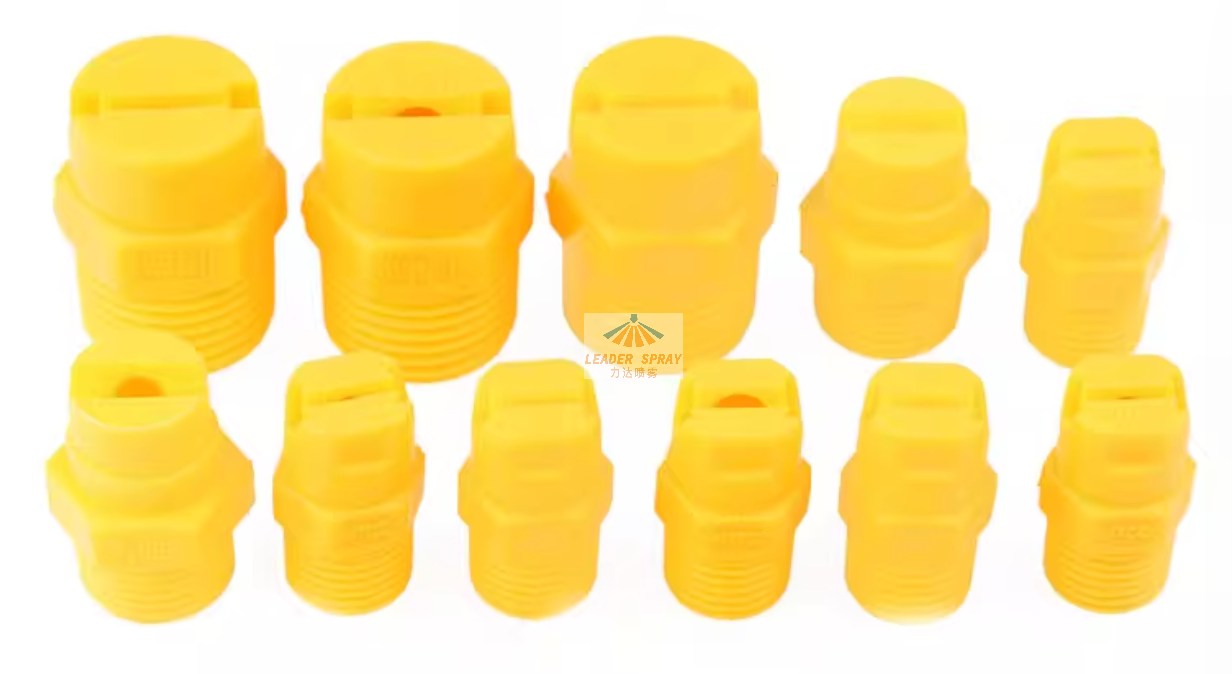

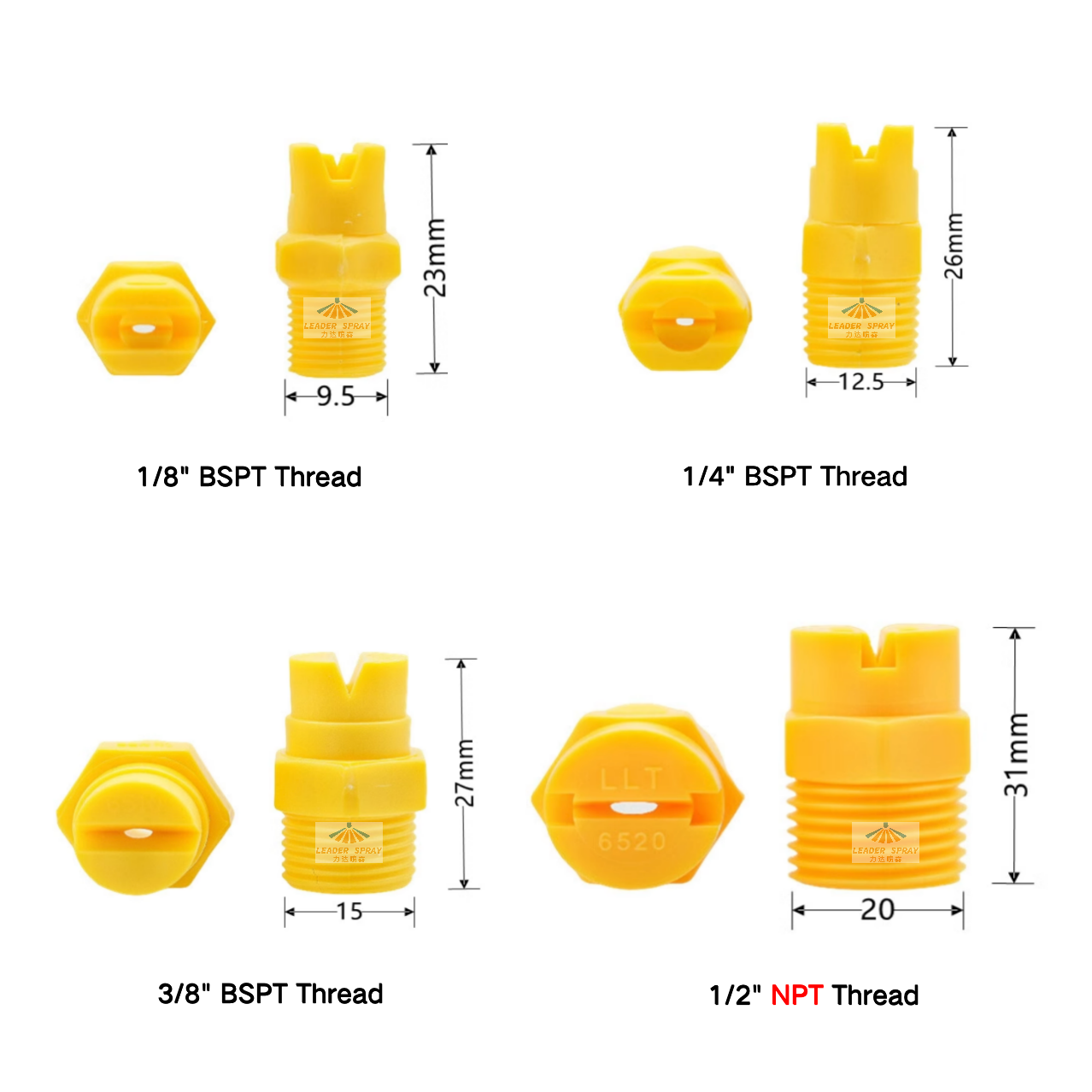

Products pictures:






Applications:
1. Pretreatment chemical cleaning
2. High pressure cleaning
3. Dust Control
4. Quenching
5. Clean the circuit board
6. Defoaming
7. Cooling and hardening
8. Washing products
9. Cooling water
10. Cleaning air
11. Scrubber
12. Spray coating
