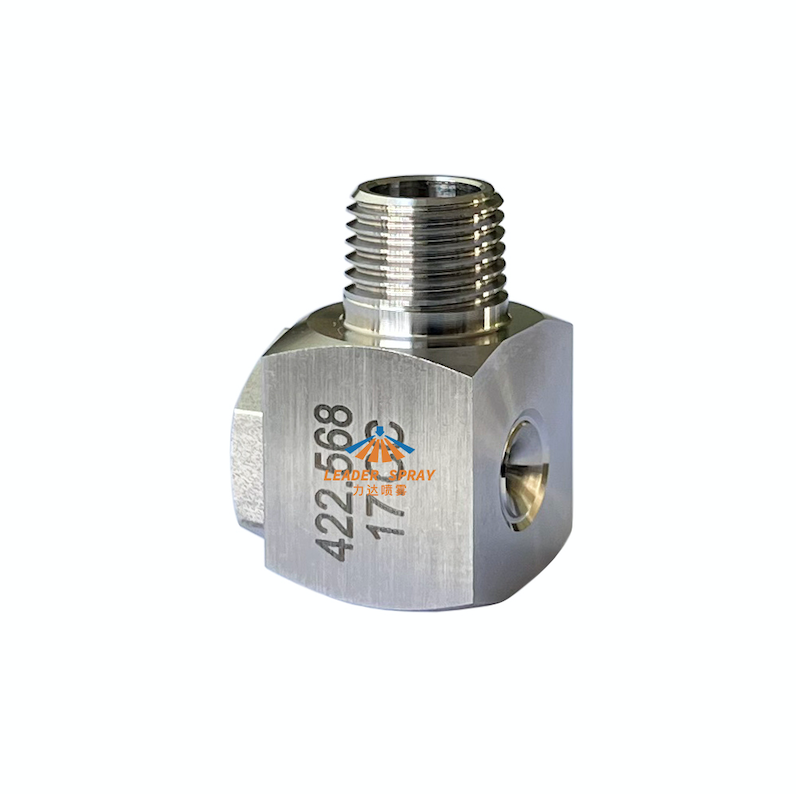

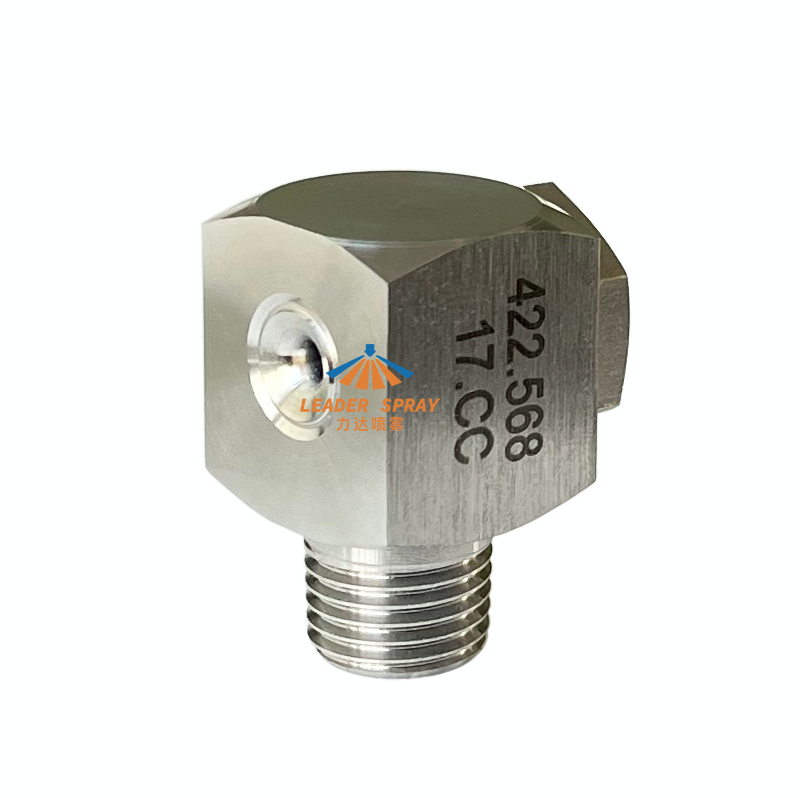

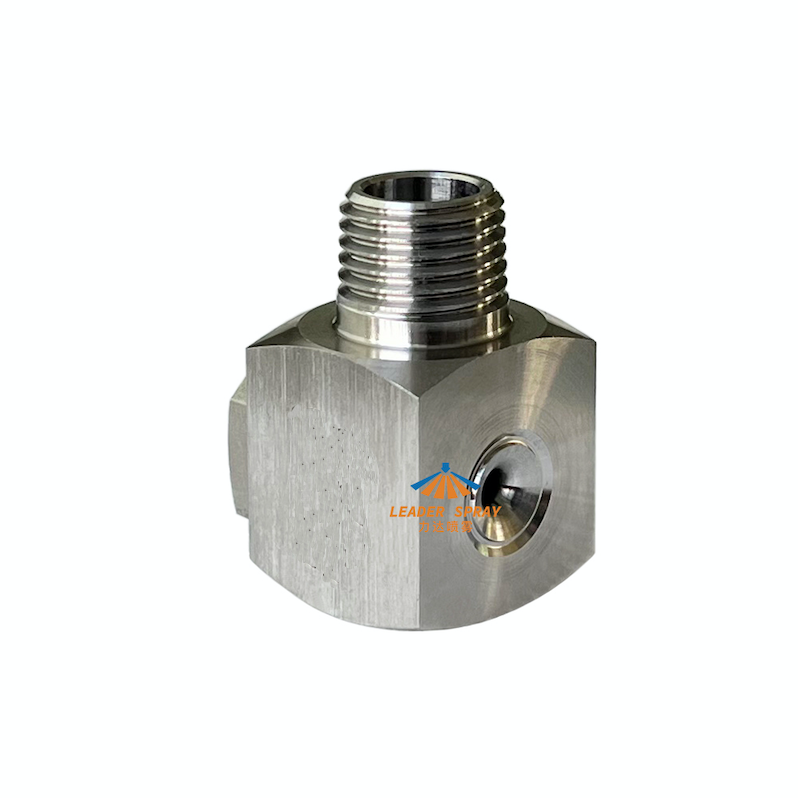

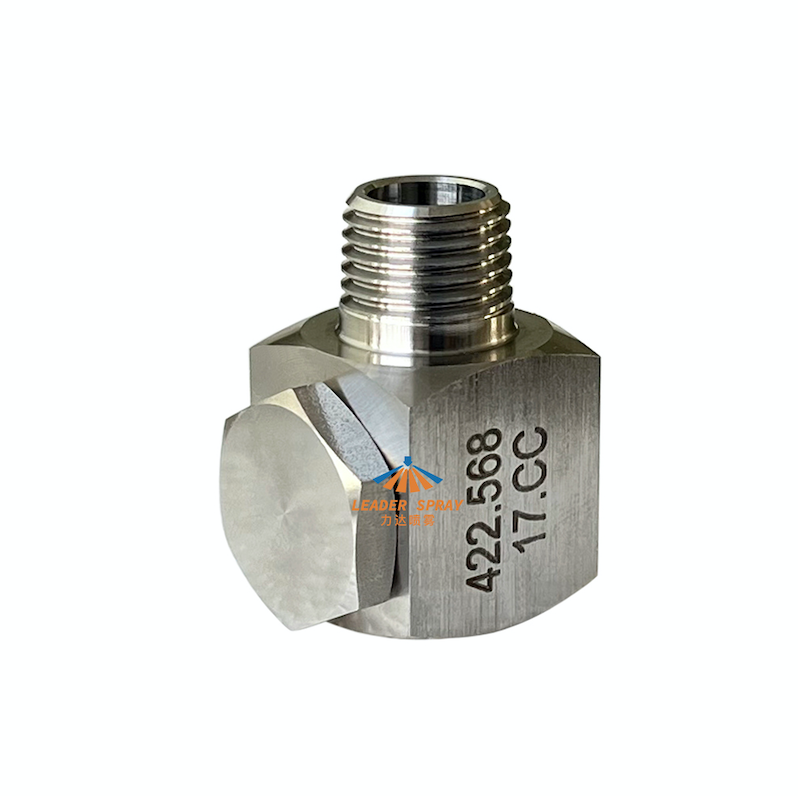

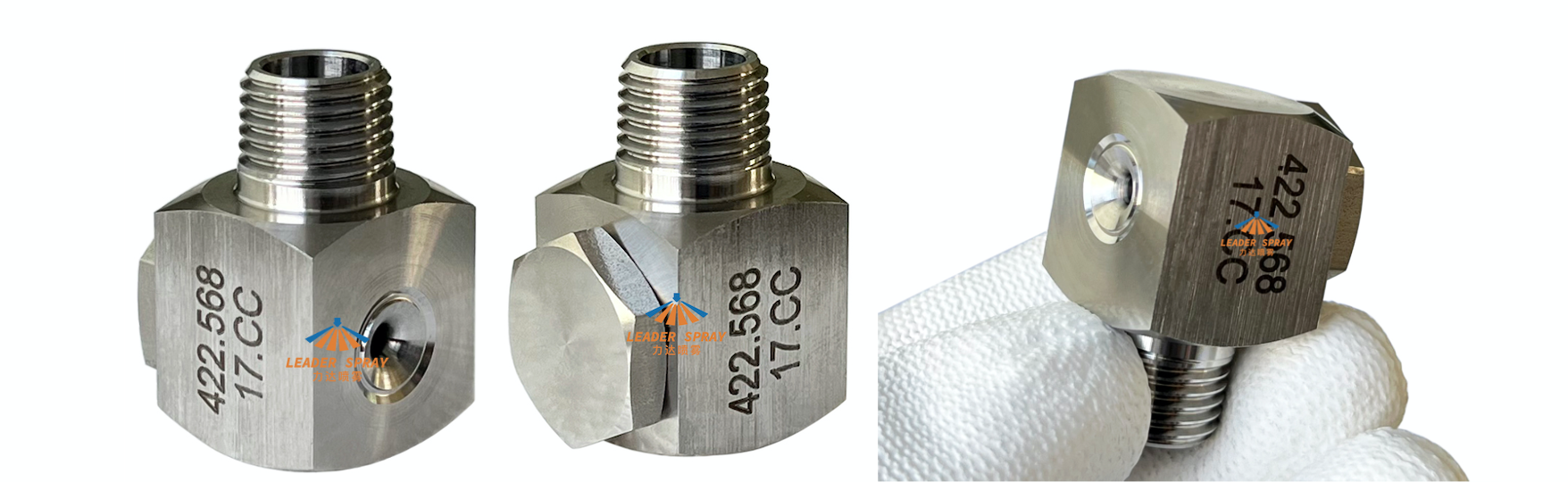

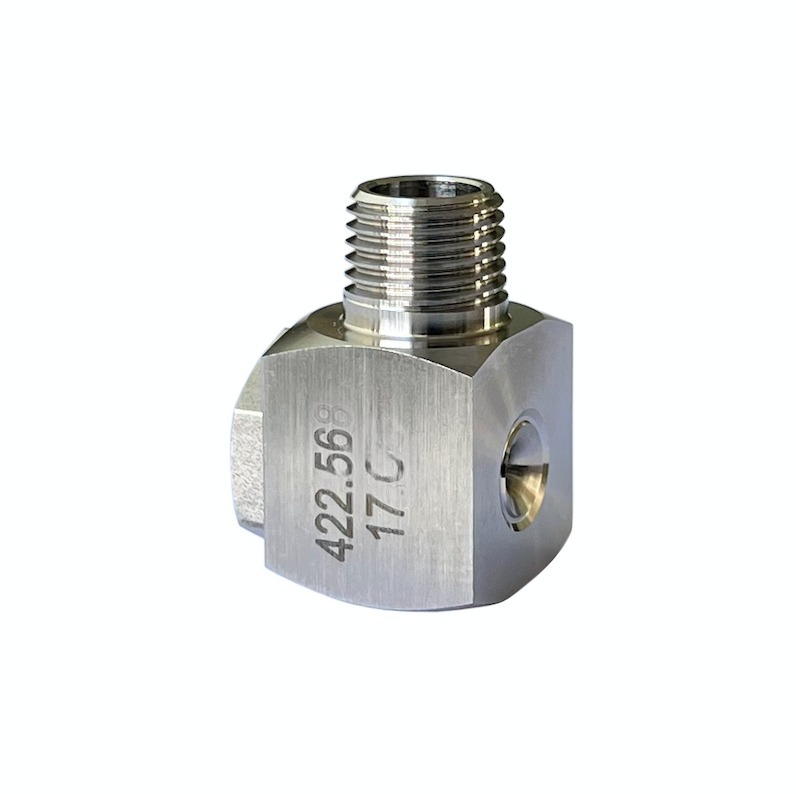

Tangential flow full cone nozzle stainless steel without swirl insert non clogging uniform liquid jet spray

Spray Characteristics
● Thread size: 1/4″, 3/8″,1/2″
● Spray pattern: No swirl full cone

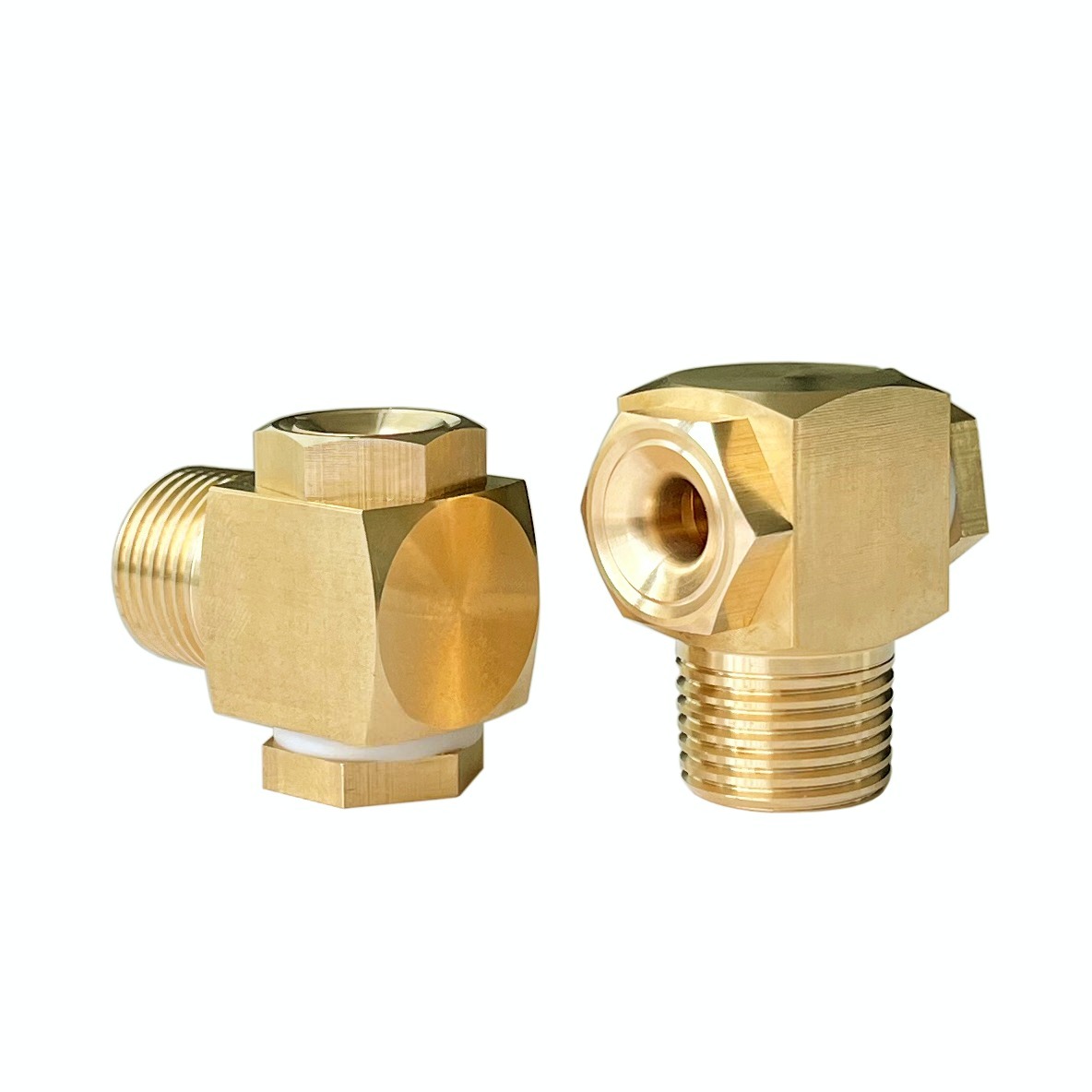

● Material: SS/Brass
● Advantage: be customized

Артикул: 1184883 Категория:

Описание

Product feature:
● Spray angle from 60 degree to 120 degree;
● Thread Specifications: 1/4″, 3/8″, 1/2″;

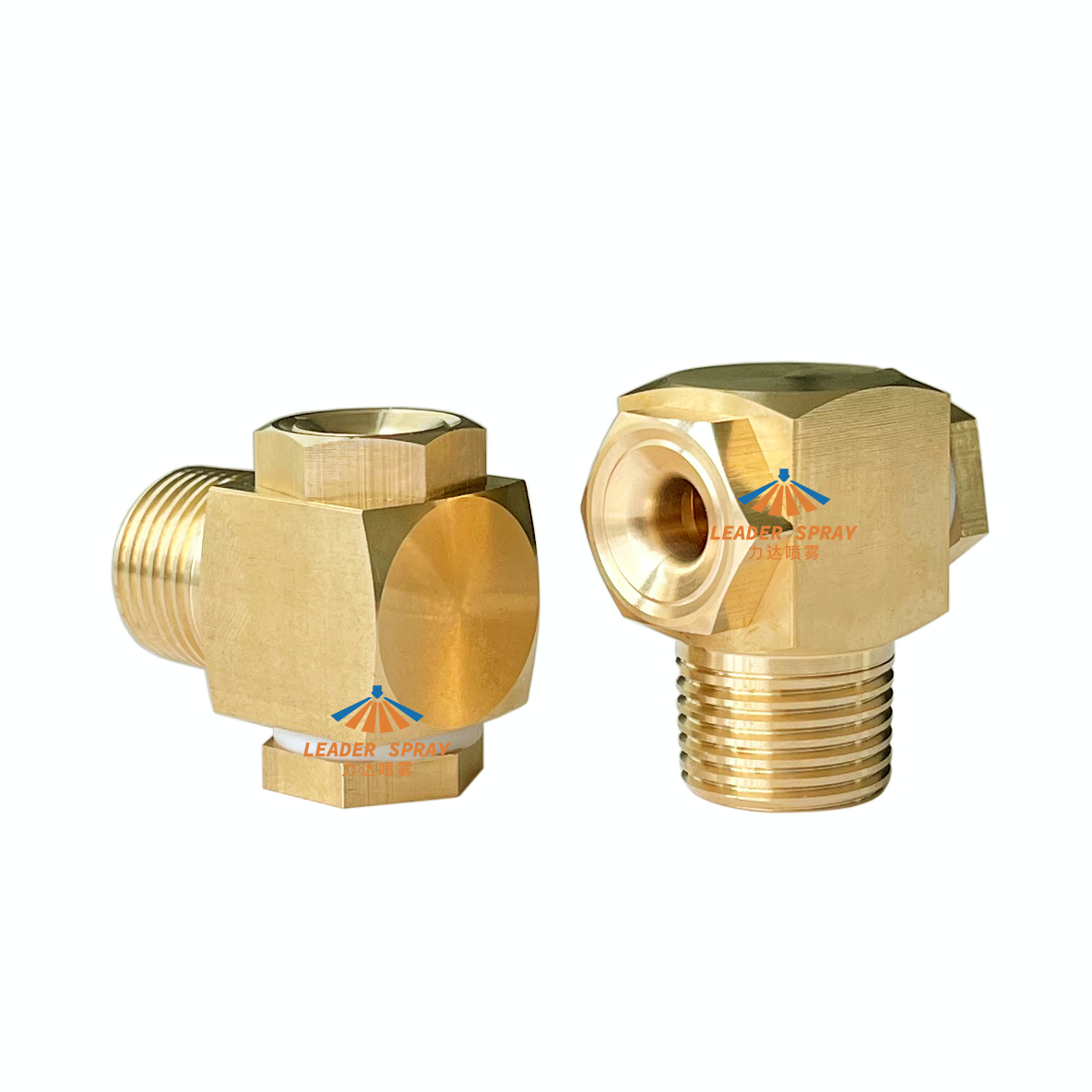

● Material: Stainless Steel (SS) and Brass;
● Without swirl inserts;
● Tangentially arranged supply of liquid;
● Non-clogging;
● Stable spray angle;

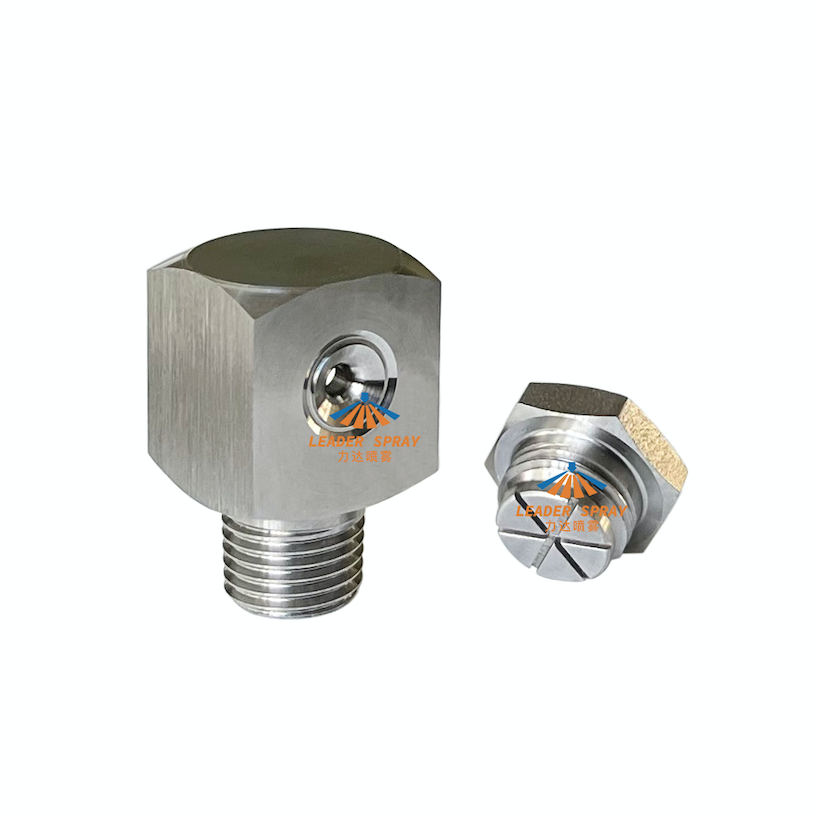

● Detachable cap design for easy maintenance and cleaning;
● Uniform liquid distribution.

Applications:
Surface spraying
Cooling
Cleaning and washing processes
Foam control

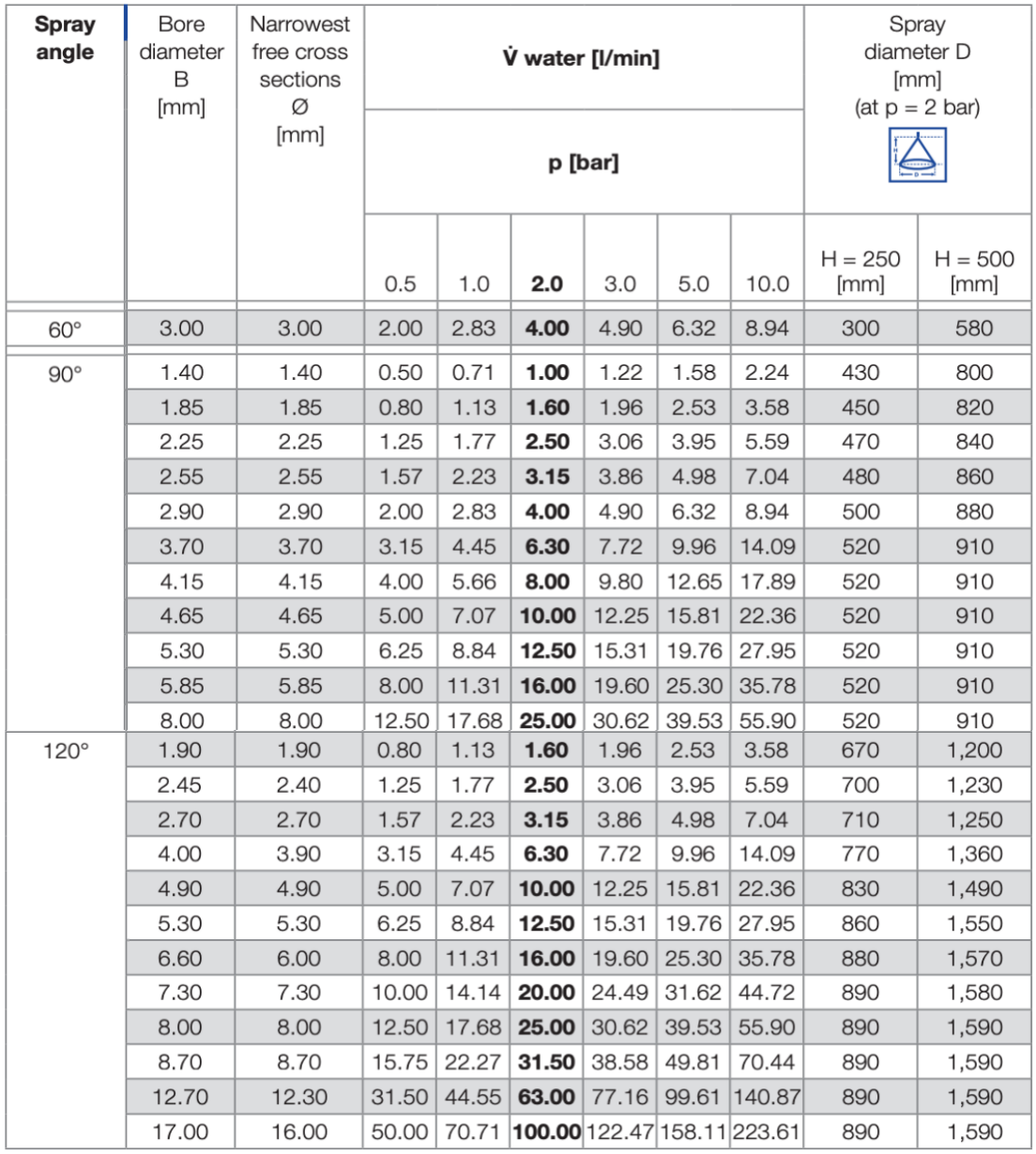

Technical data:









Applications:
● Phosphating of metal parts
● Car rain test
● High pressure washing
● Chemical cleaning of printed circuit boards
● Mirror-making silver plated
● Paper mill mesh roll cleaning
● Food Industry Beverage Bottle Cleaning
● SO2 removal
● Nitric oxide control
● Steelmaking and continuous casting cooling
● Exhaust gas scrubbing
● Quenching and Cooling
● Fire fighting and fire protection
● Dust control
● Defoaming
● Spray application
