Product feature:

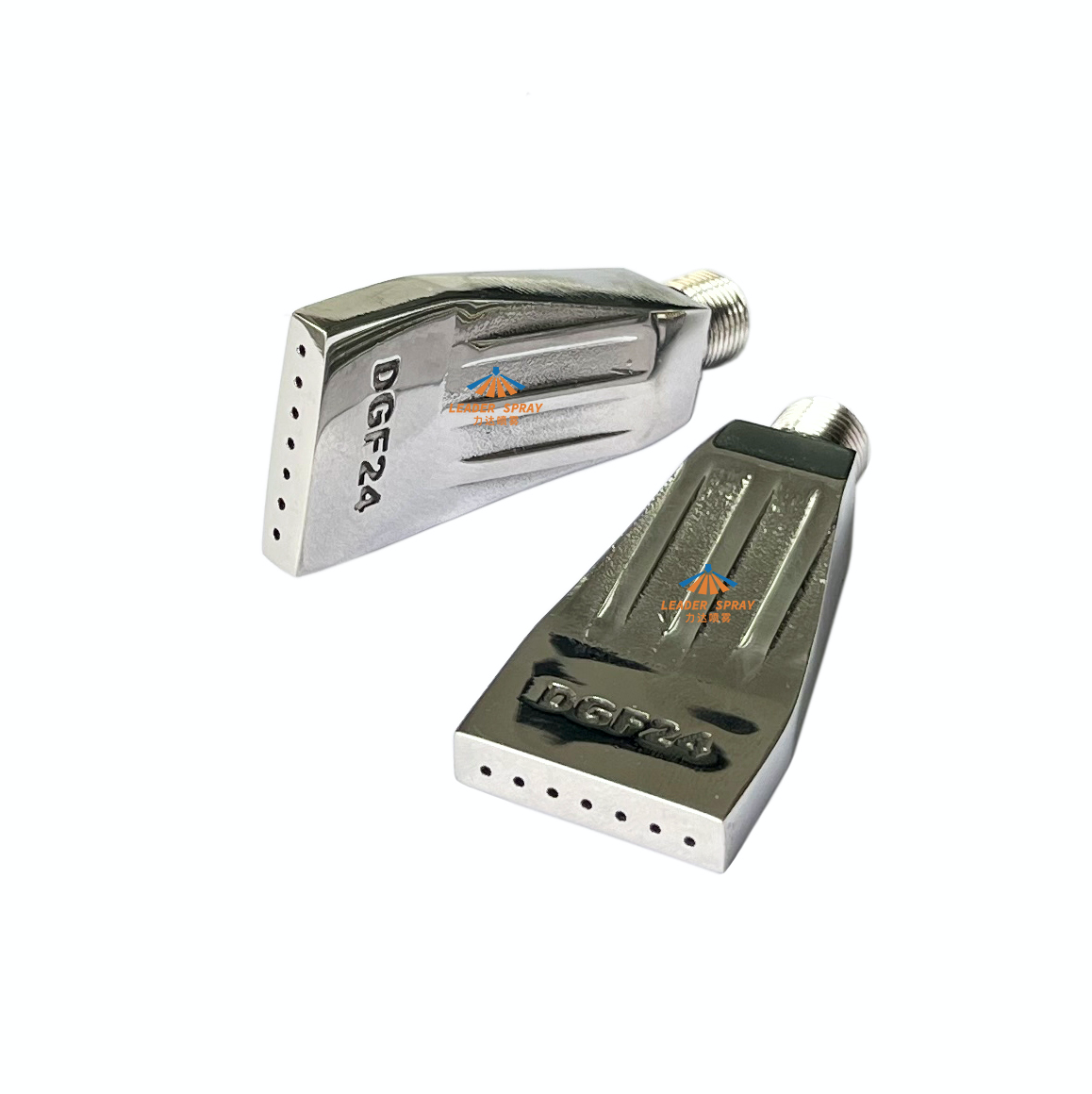

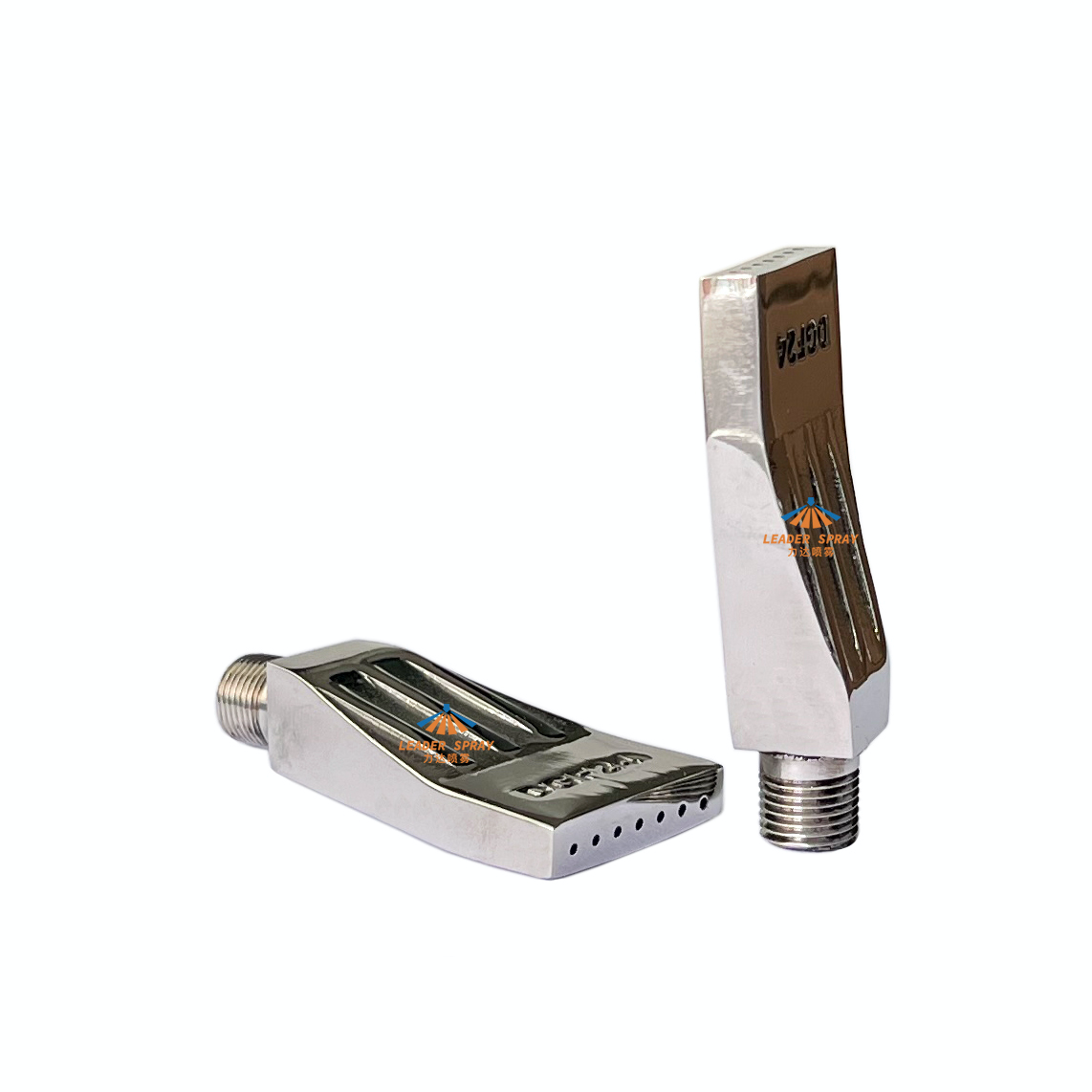

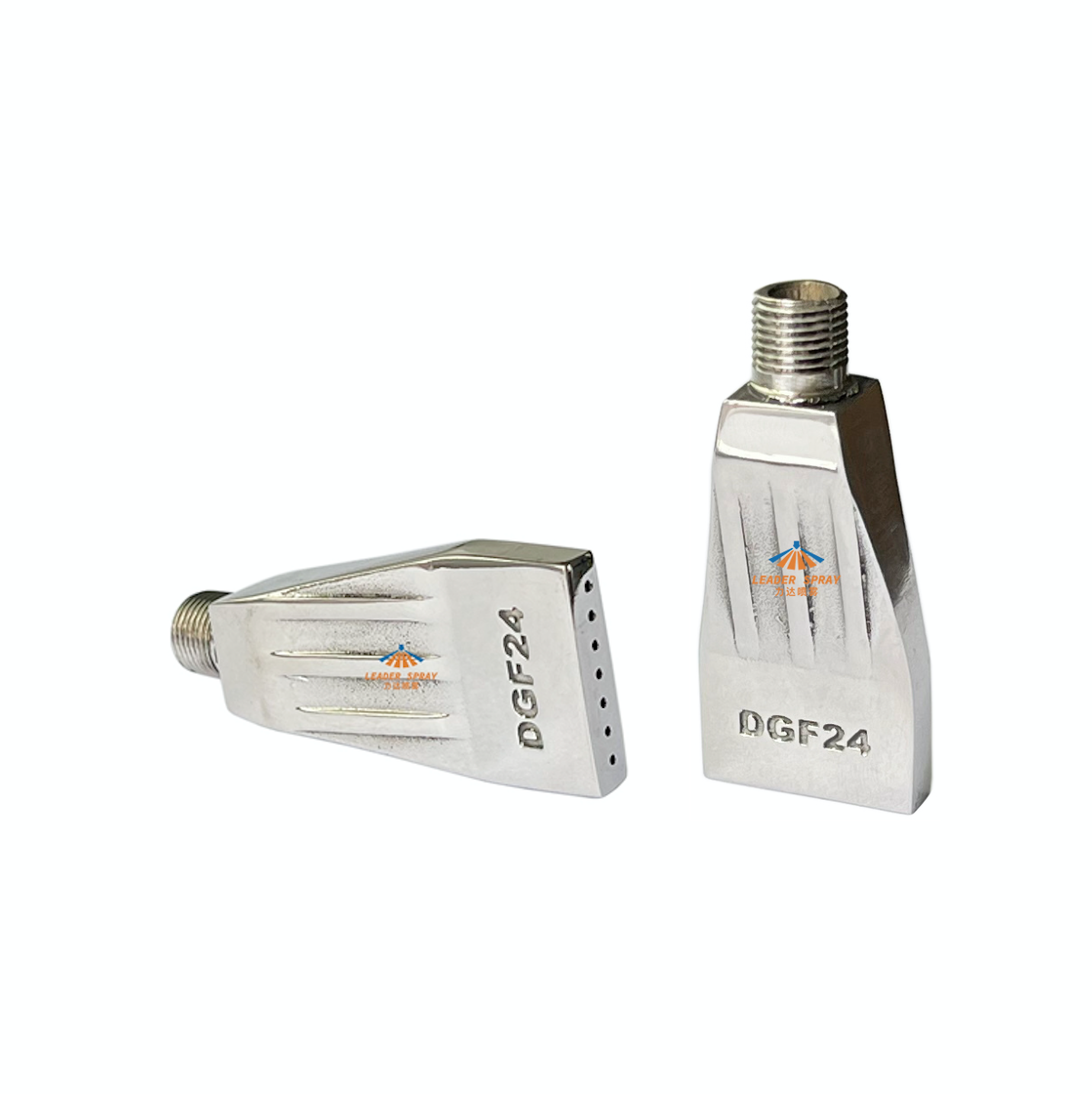

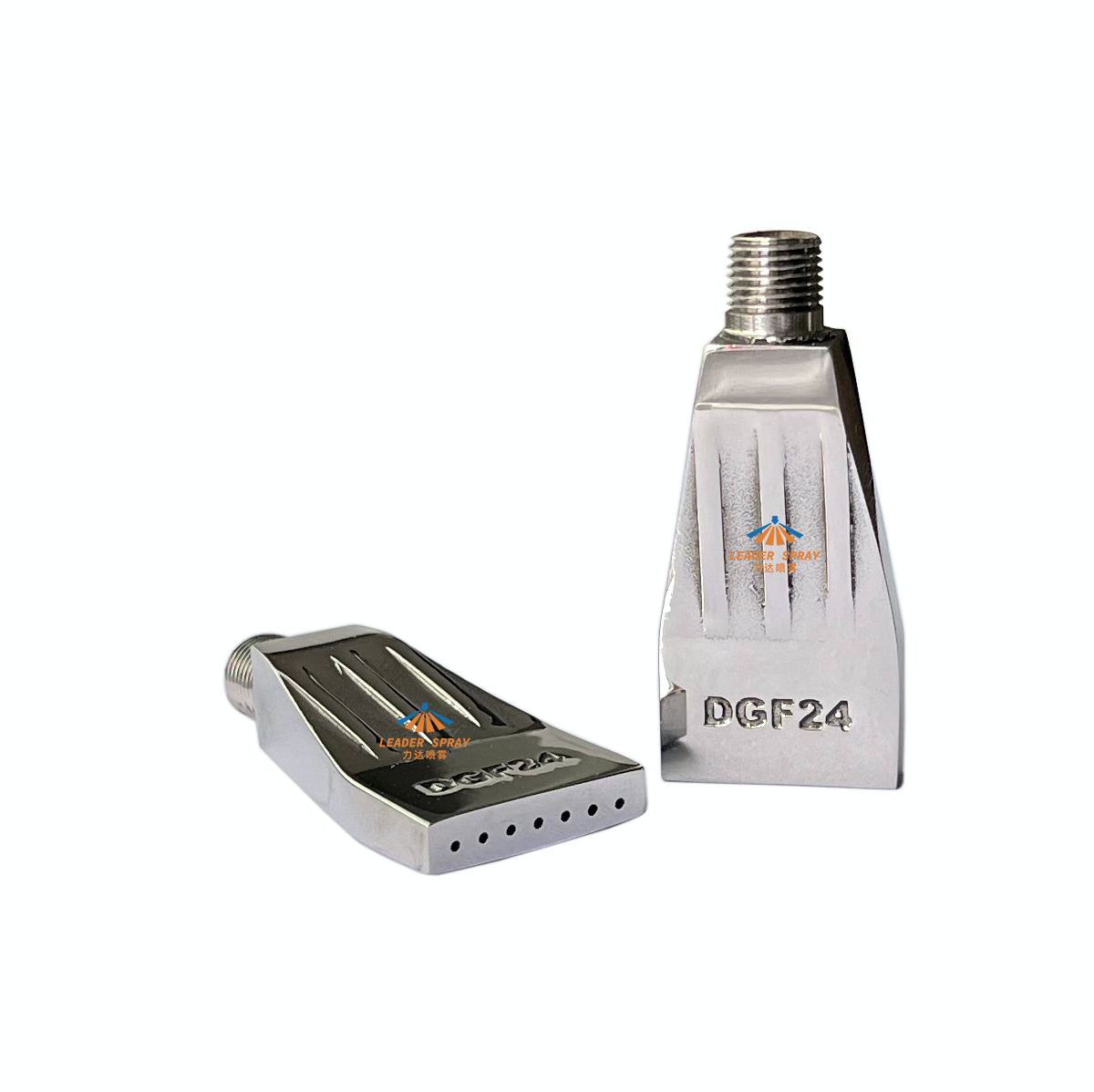

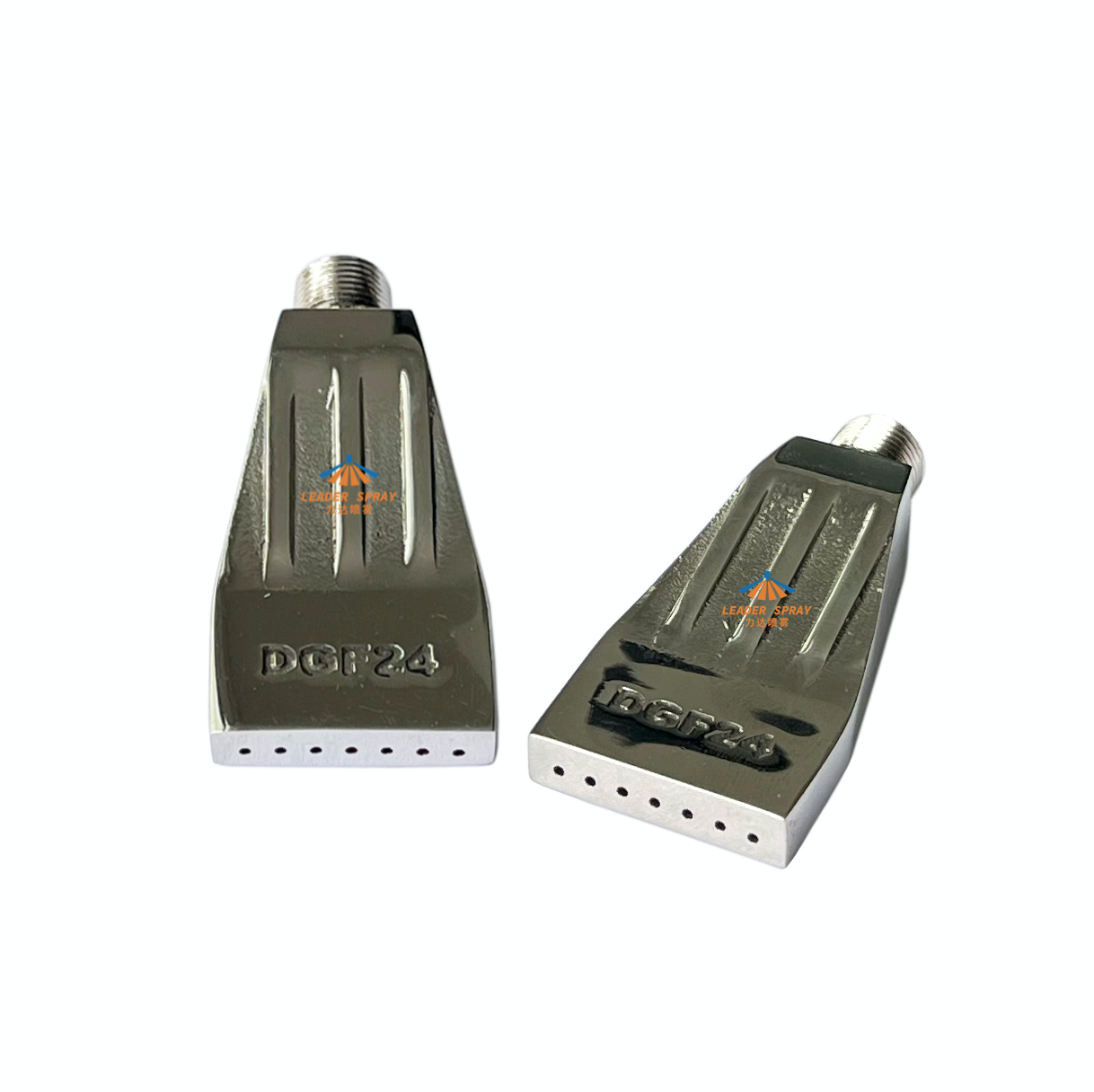

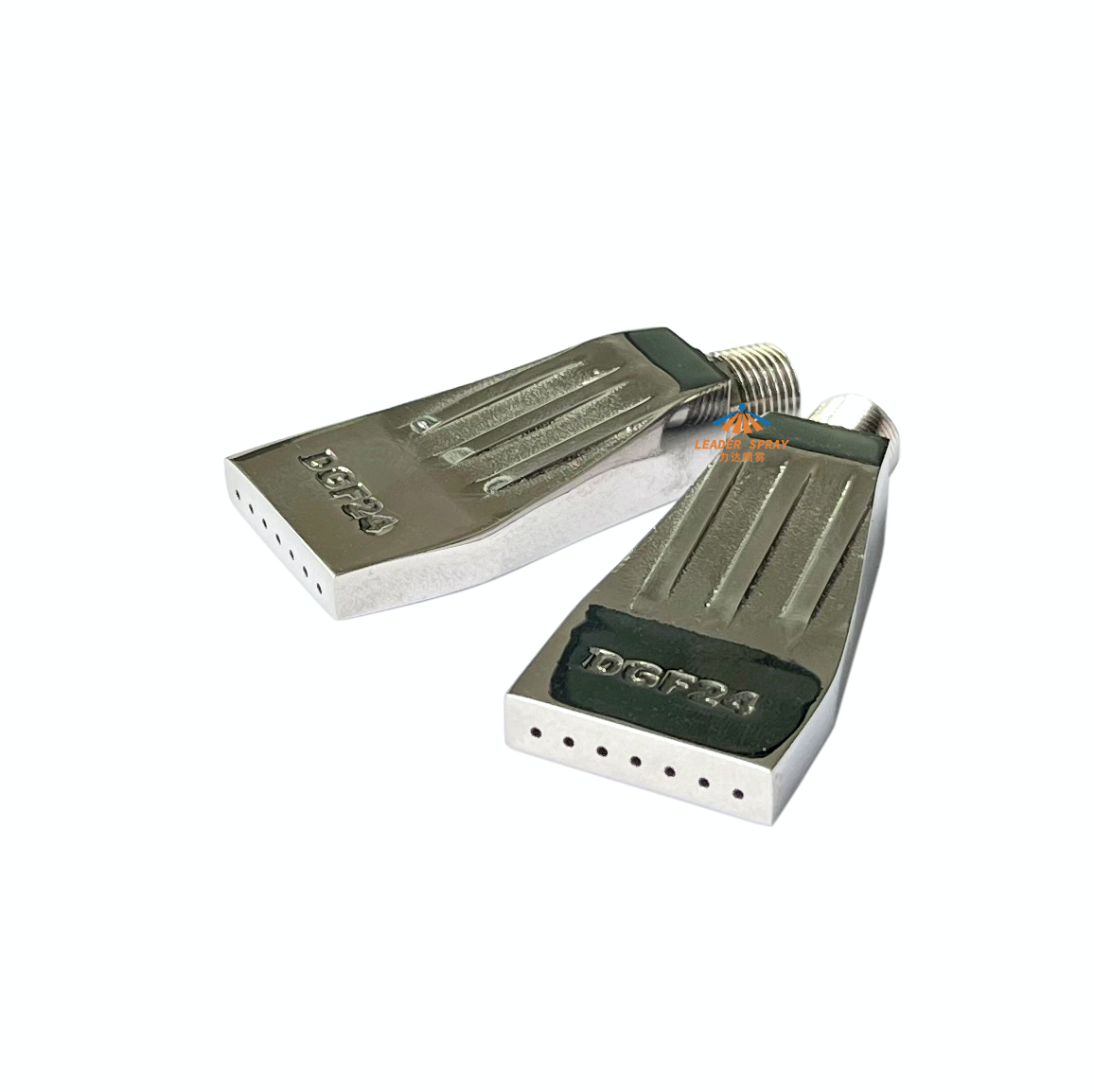

- Produce a fan-shaped compressed air jet, the air jet is from the opening of 7 pcs grooves;

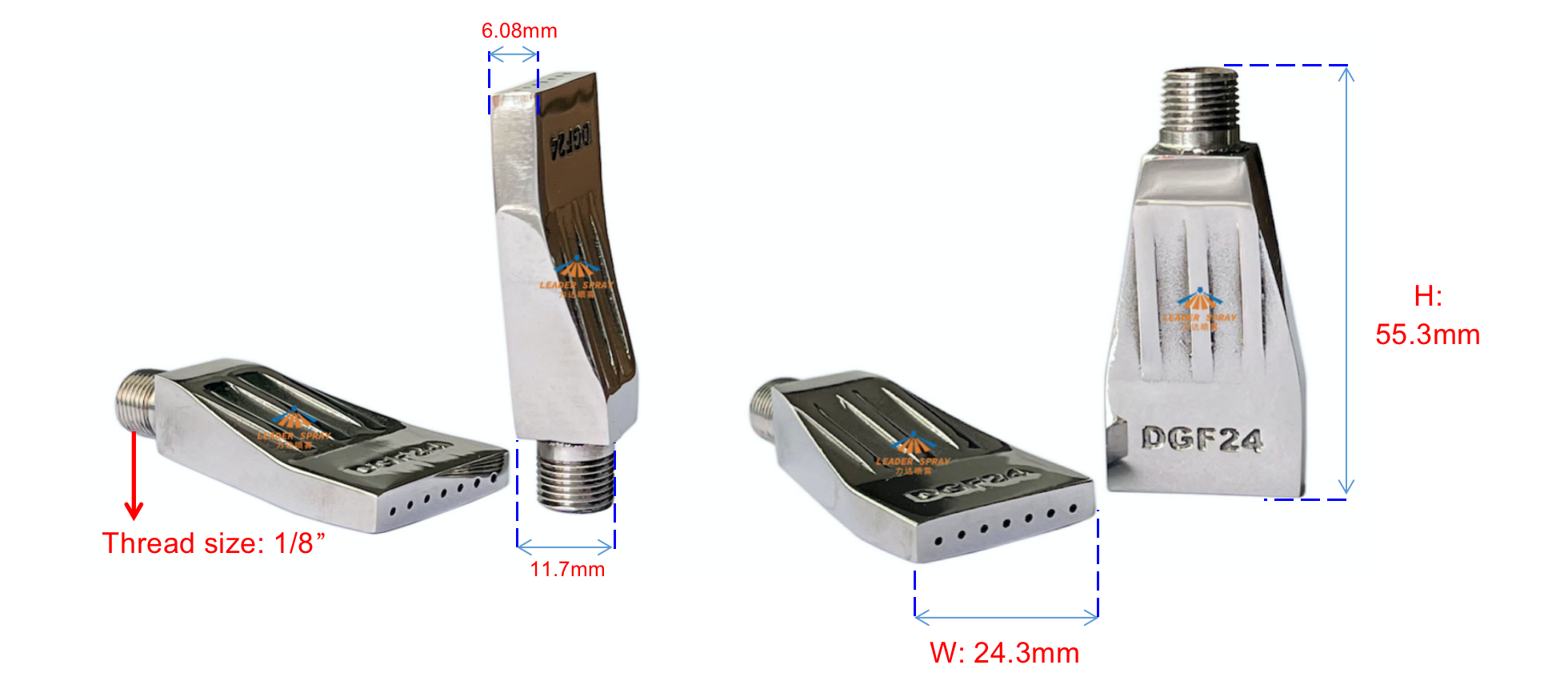

- Thread size is 1/8″;
- Hole size is 1 mm;

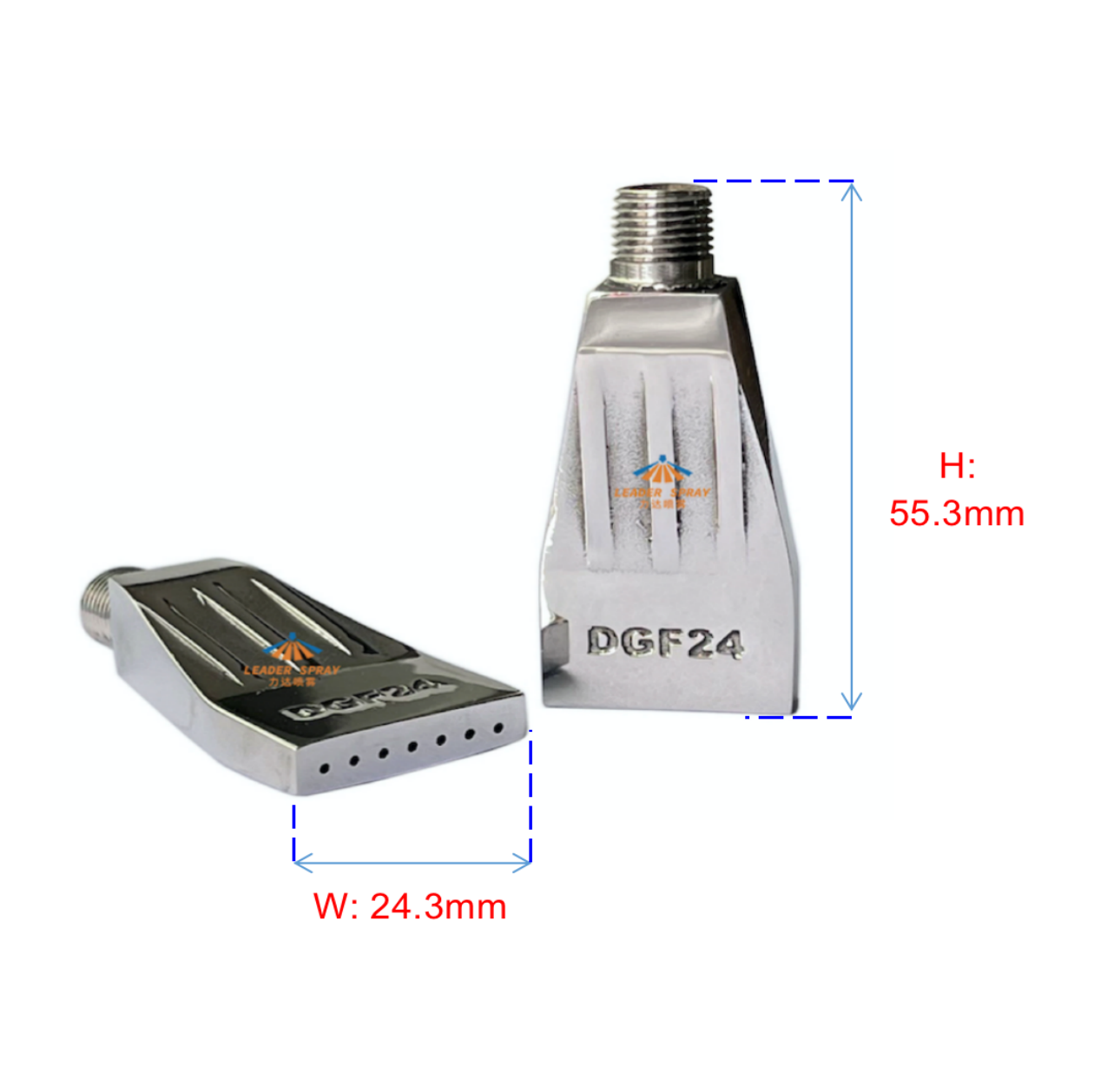

- Width is 24.3mm, length is 55.2mm;
- Jets high-impact compressed air;
- Fixed row of nozzles provides an effective air curtain;
- The internal structure design conforms to the principle of aerodynamics, effectively reducing the air resistance during operation;
- Low operating noise and low air consumption;
- Fan-shaped compressed air flow;
- Eco-friendly silent design;
- Material: Stainless steel Injection Molding;
- Maximum Working Pressure: 50 bar.
Applicable industries:
Electronic, chemical, environmental protection, steel, machinery, coating, electroplating, textile, automobile, paper, medicine, food and other industrial production fields.
Applications:
- Plating pretreatment cleaning;
- Painting and coating before chemical treatment;
- Part cooling;
- Parts dry;
- Parts washing;
- Material movement;
- Removal of dust in molds;
- Air in cast iron pipes;
- Blow bottle drying;
- Assembly line drying;
- Dust removal from leather;
- Cooling hot rollers;
- TV screen spray;
- Industrial tank cleaning;
- Deburring in plug holes;
- Smooth surface application of chocolate candy;
- Washing or drying PCB manufacturing;
- Moisture purge on transfer chamber surface;
- Dry plastic packaging tray;
- Leak testing of dry pressure spray cans after cleaning.
